Kohler Decision-Maker 3000 Operation

138 TP-6694 9/20

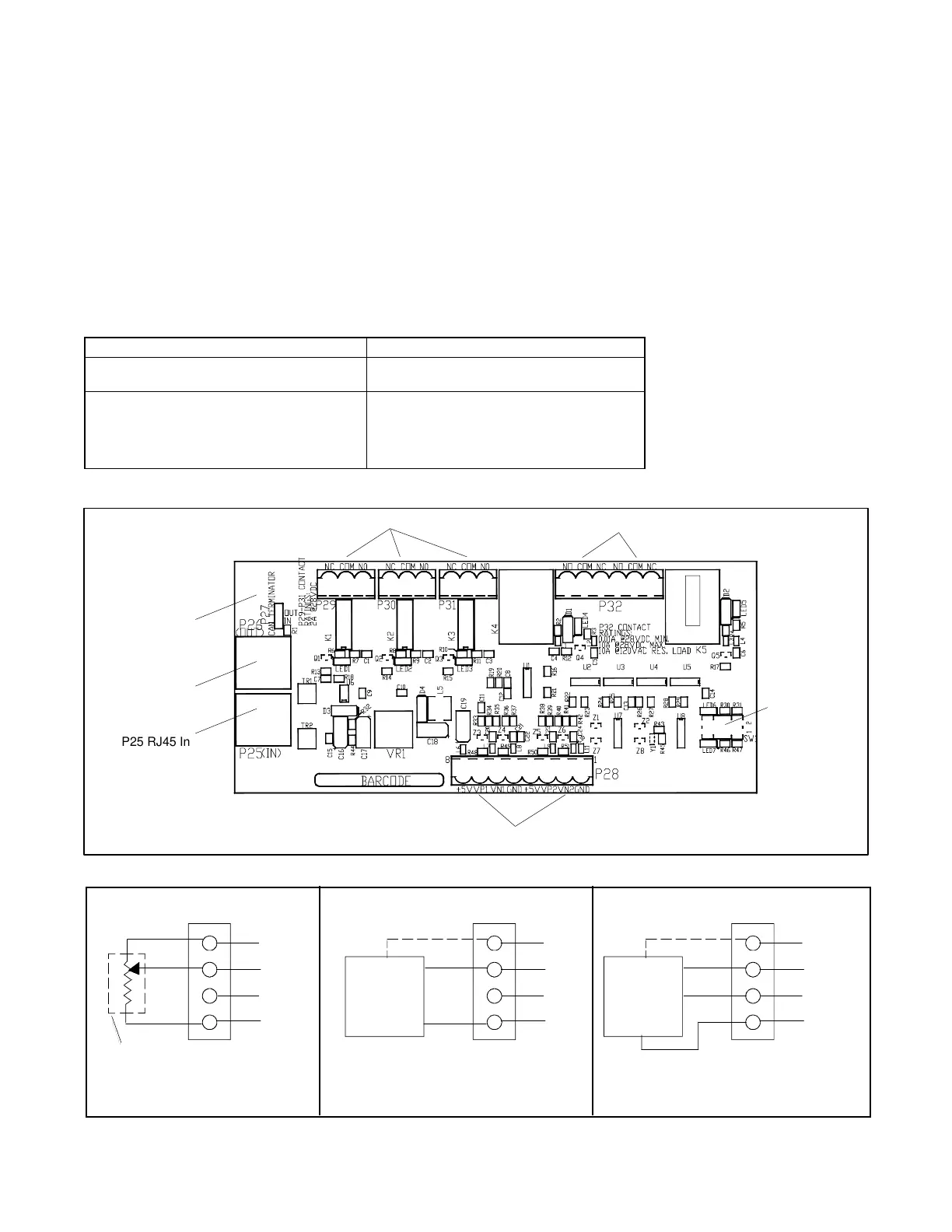

6.1.6 Two-Input/Five-Output Module
The two-input/five-output module provides a generator set mounted panel with two analog or digital inputs and five digital outputs.
See Figure 70 for circuit board components and electrical connections to the controller.
 See Figure 71 for connections of analog inputs.
 See the following subsection, Accessory Connections, for terminal identification.
Use a computer with Kohler SiteTech™ software to assign functions to digital outputs. Each input and output corresponds to a
controller connection. Verify that the settings are appropriate for the connected sensor, switch, or equipment.
 Refer to Introduction—List of Related Materials for the SiteTech™ Software Operation Manual part no.
SiteTech™ analog inputs B1 and B2 and digital outputs B1 through B5 are designated for use on the optional two-input/five-
output module. See Figure 69.
SiteTech I/O Name
Optional I/O Module Connection
Analog Input B1
Analog Input B2
P28 Analog Input VN1/VP1
P28 Analog Input VN2/VP2
Digital Output B1
Digital Output B2
Digital Output B3
Digital Output B4
Digital Output B5
P29 (K1)
P30 (K2)
P31 (K3)
P32 (K4)
P32 (K5)
Figure 69 Input/Output Assignments
Figure 70 Two-Input/Five-Output Module Board
Figure 71 Analog Input Connections P28
P29/P30/P31 K1/K2/K3 2-amp relay outputs
P32 K4/K5 10-amp relay outputs
SW1 switch
P28 In1/In2 analog or digital inputs
P25 RJ45 In
(APM402/DEC
3000 P23)
P26 RJ45 Out
P27 CAN
terminator
Optional 5 V Power
(50 mA max.)
Optional 5 V Power
(50 mA max.)
100 ohm min. or
50 mA max. current
0-5 Volt Ratiometric Sensor
0-5 Volt Analog Device
+/- 3 Volt Analog Device
TP-6694-6
P36
+5
VPx
VNx
GND
+5
VPx
VNx
GND
+5
VPx
VNx
GND
P36
P36
Analog
Device
Output
GND
GND
Analog
Device
+
-
