Maintenance
Lubricating system
u Replace rotor cover 8 seals in cover 4.

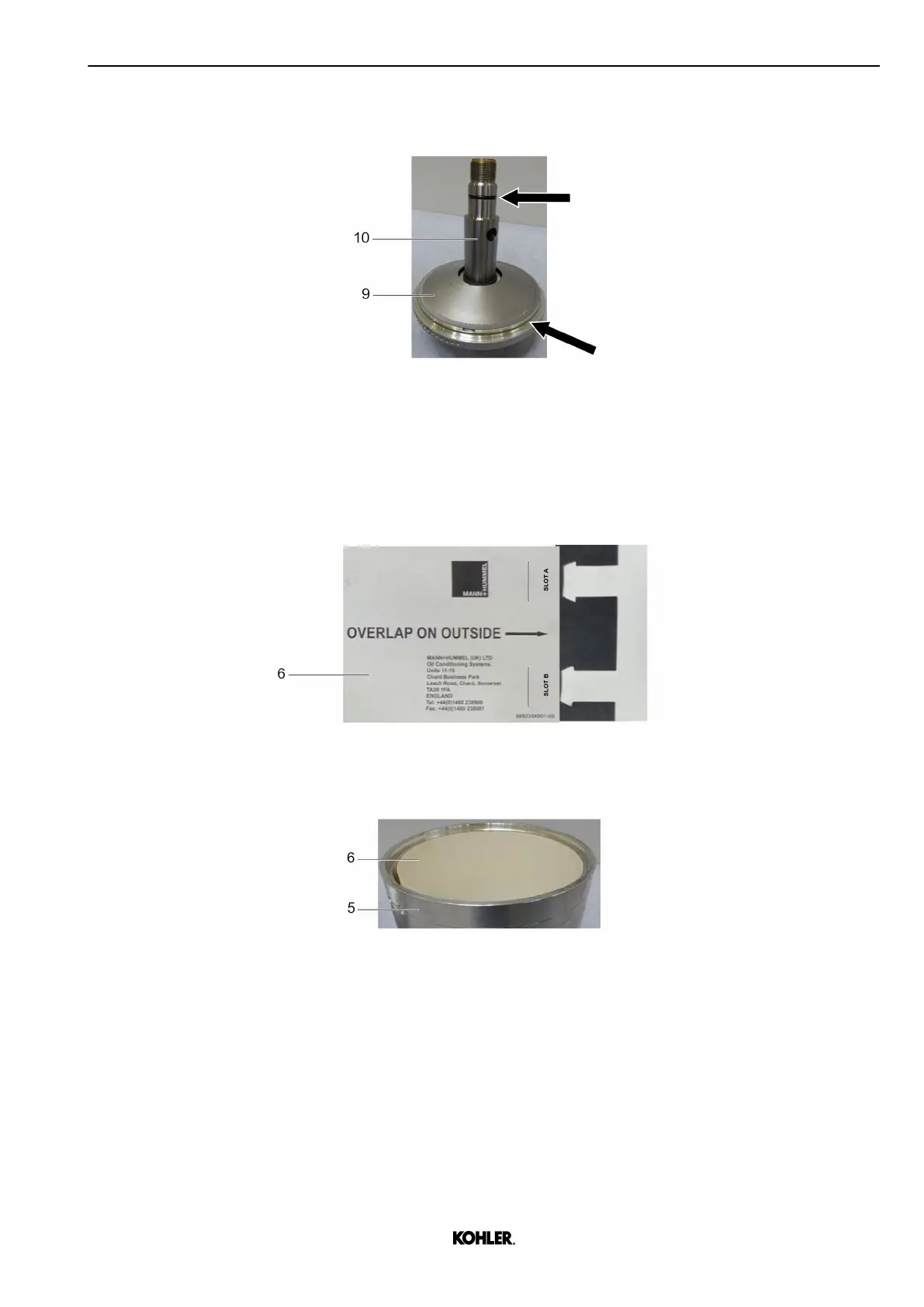

Fig. 61: Deflector disk and seals on rotor base and bearing tube
u Lift and clean the deflector disk 9.
u Clean bearing tube 10 and rotor base 7.
u Replace seals of rotor base 7 and bearing tube 10.
u Insert deflector disk 9.
Fig. 62: Paper filter preparation
u Insert paper filter 6 tabs in slot A and slot B.
Fig. 63: Inserting paper filter
u Insert paper filter 6 in rotor cylinder 5.
