Maintenance
Generic maintenance activities
5.8 Generic maintenance activities
5.8.1 Removing the battery charging alternator cover

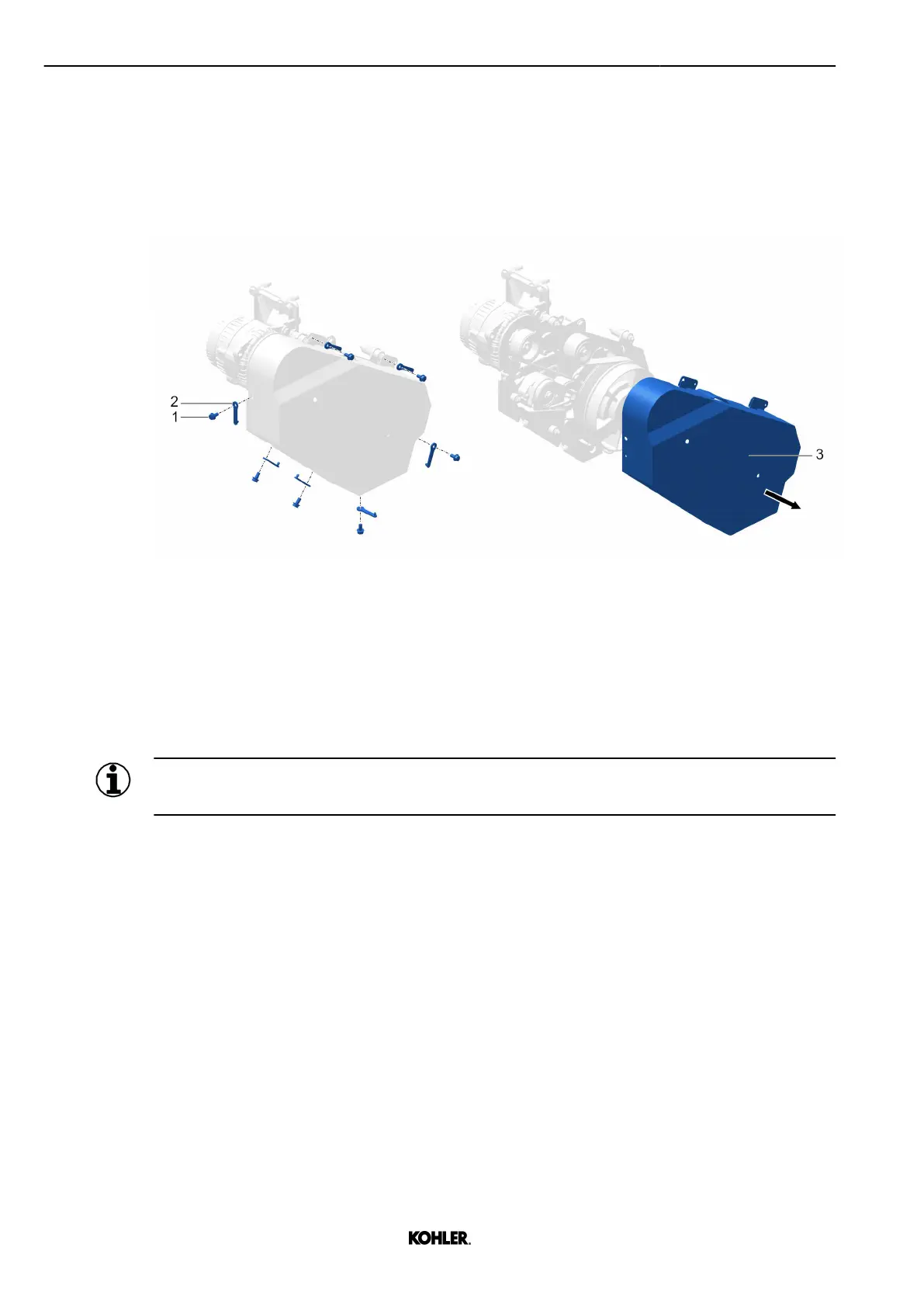

Fig. 48: Battery charging alternator cover details
1
Screw (M8) 3 Cover
2 Lock washer
Preparatory maintenance activities are fulfilled. (For more information see: 5.5 Preparatory
maintenance activities, page 98.) .
u Unscrew and remove screws 1.
u Remove cover 3 with screws and lock washers 2.
Information
Perform assembly in reverse sequence.
106
© 2022 by Kohler Co. All rights reserved.
KD62V12 33521030301_8_1 EN_US 2022-09
