1 Product description
1.1 Technical description
1.1.1 Design overview

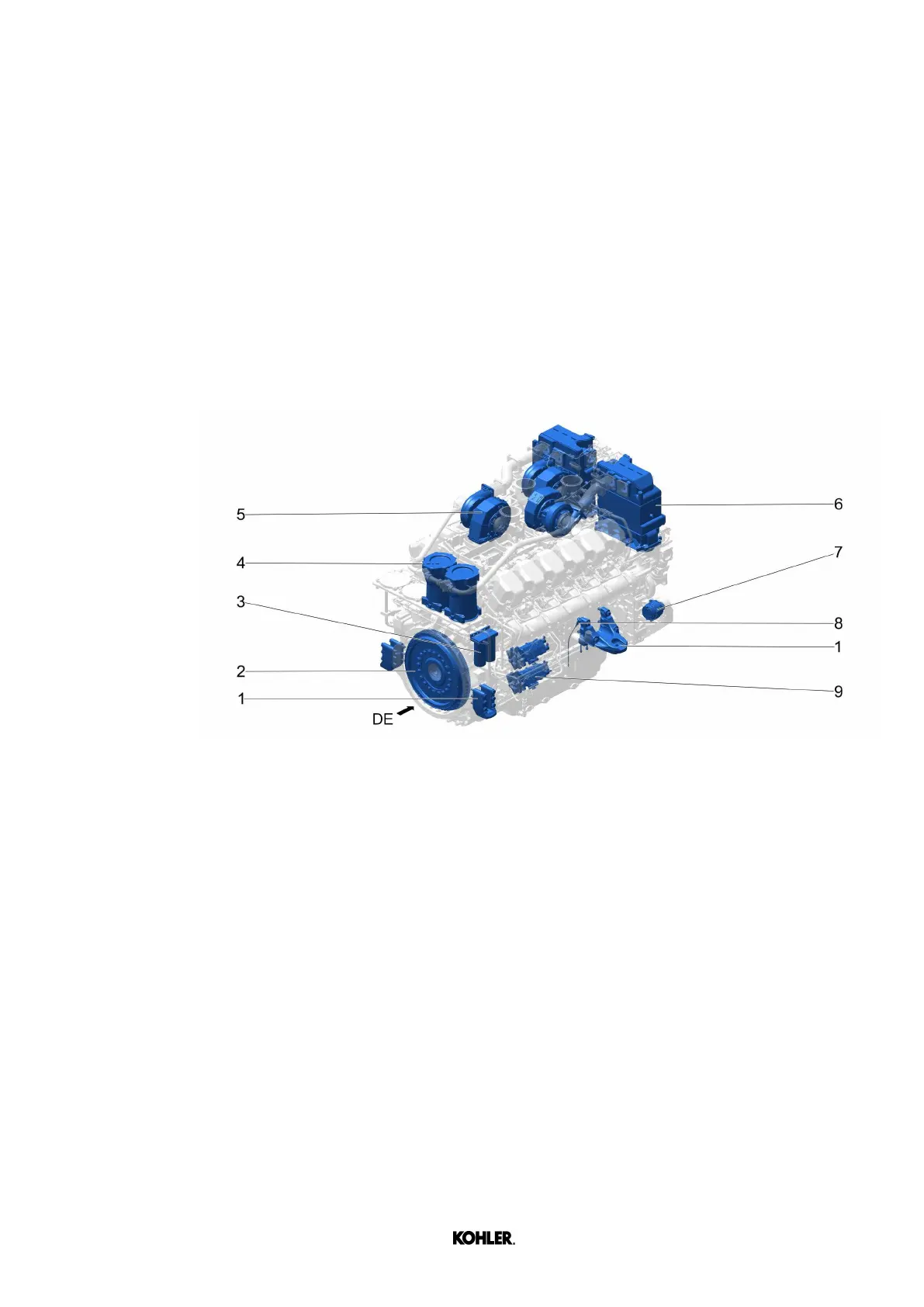

Fig. 1: Diesel engine / view from the driving end
DE
Driving end 5 Exhaust gas turbocharger assembly
1 Engine brackets 6 Charge air cooler
2 Flywheel 7 Battery charging alternator
3 Fuel filter 8 Oil dipstick
4 Crankcase breather system filter housing 9 High-pressure fuel pump
KD62V12 33521030301_8_1 EN_US 2022-09
© 2022 by Kohler Co. All rights reserved.
17
