Repair
Driving gear
Overview

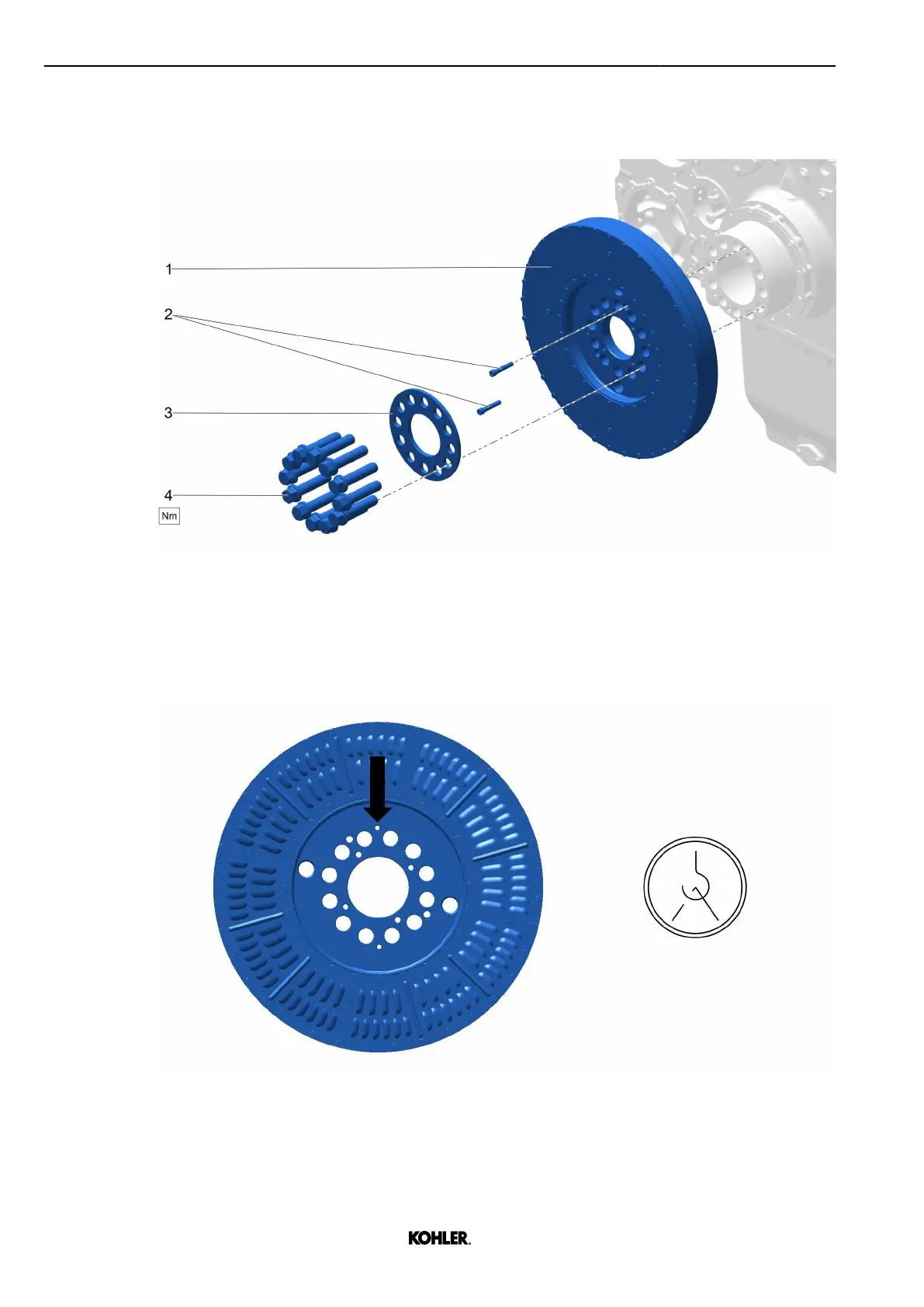

Fig. 98: Task overview
1
Torsional vibration damper 3 Disk
2 Allen screw (M12) 4 Bolt (M28)
Removal
Fig. 99: Lifting thread location
u Using the turning device, rotate the torsional vibration damper so that the lifting thread is
located at the top. (For more information see: 4.1.2 Turning device, page 261.)
100
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
