Repair
Driving gear
u Remove guiding rods.
u Remove locking device.
Installation

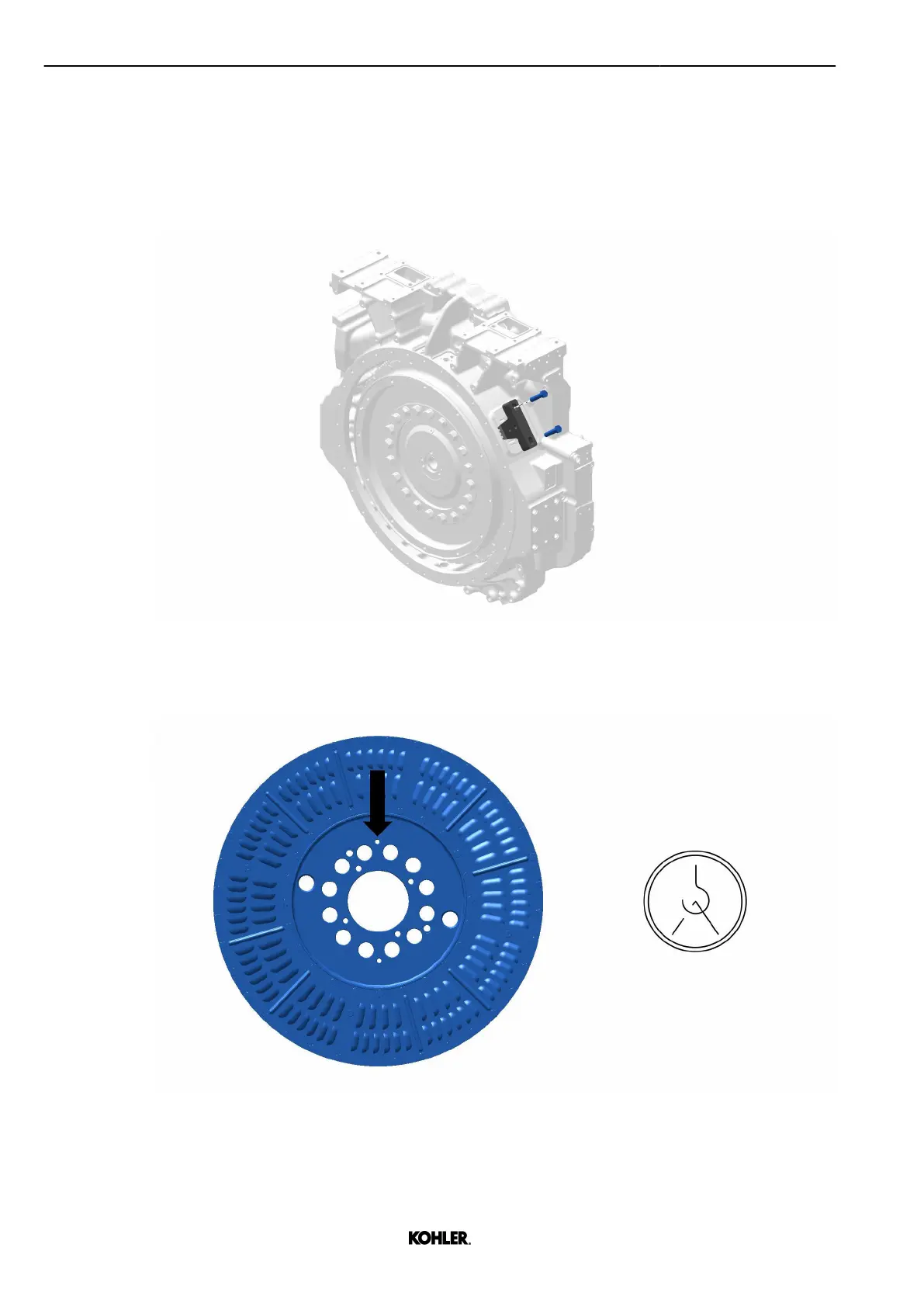

Fig. 102: Locking device
u Install locking device with screws (M16) to lock crankshaft.
Fig. 103: Lifting thread location
u Install lifting device on the lifting thread.
u Lift torsional vibration damper 1.
102
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
