Kohler KD62V12 User Manual

Repair
Fuel system
Overview

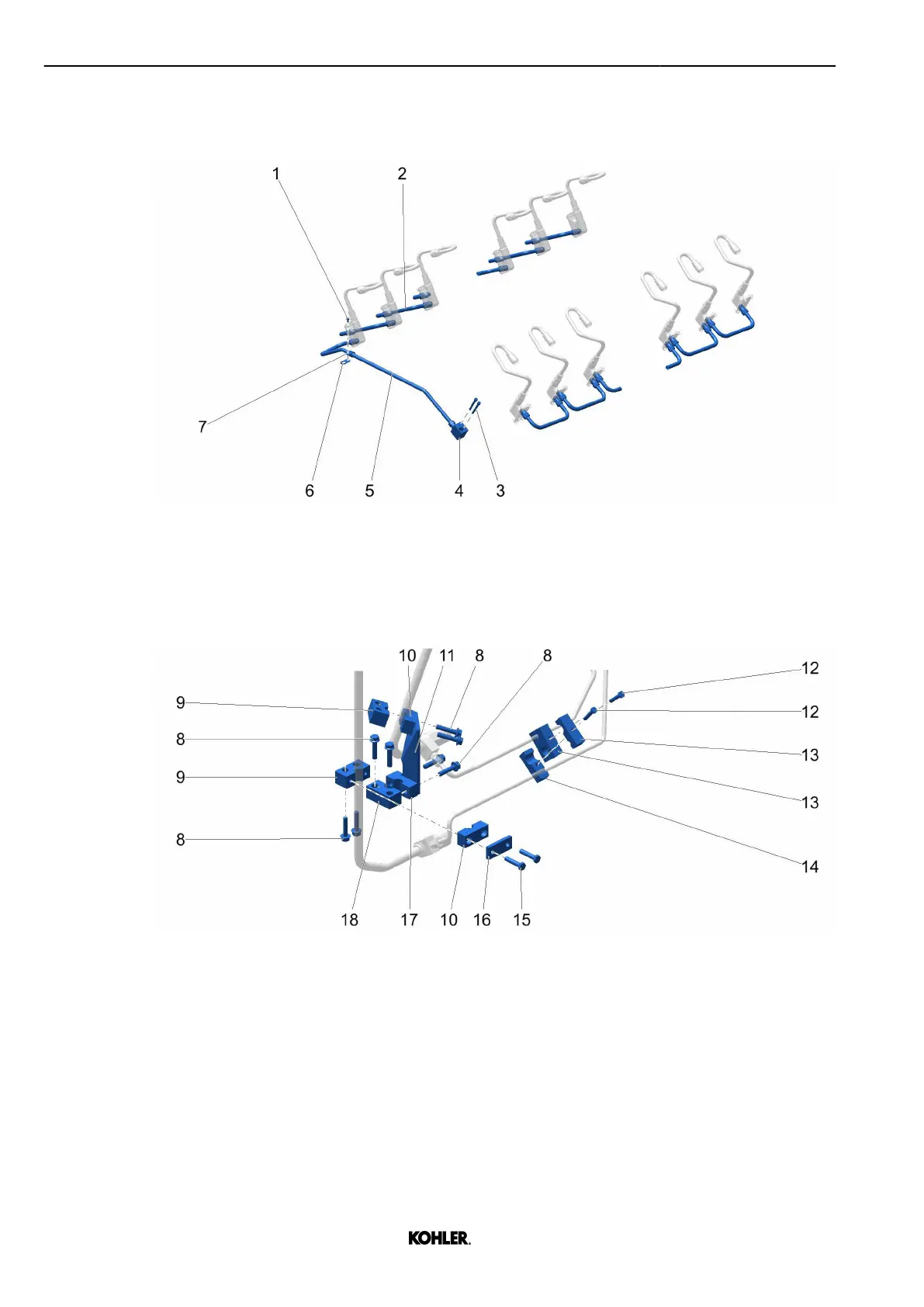

Fig. 113: Task overview
1
Screw (M8) 5 Fuel pipe
2 Fuel pipe 6 Retaining plate
3 Screw (M10) 7 Clamp
4 Distributor block
Fig. 114: Task overview
8
Screw (M10) 14 Clamp
9 Clamp 15 Screw (M10)
10 Clamp 16 Plate
11 Holder 17 Clamp
12 Screw (M8) 18 Clamp
13 Clamp
114
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
