Repair
Fuel system

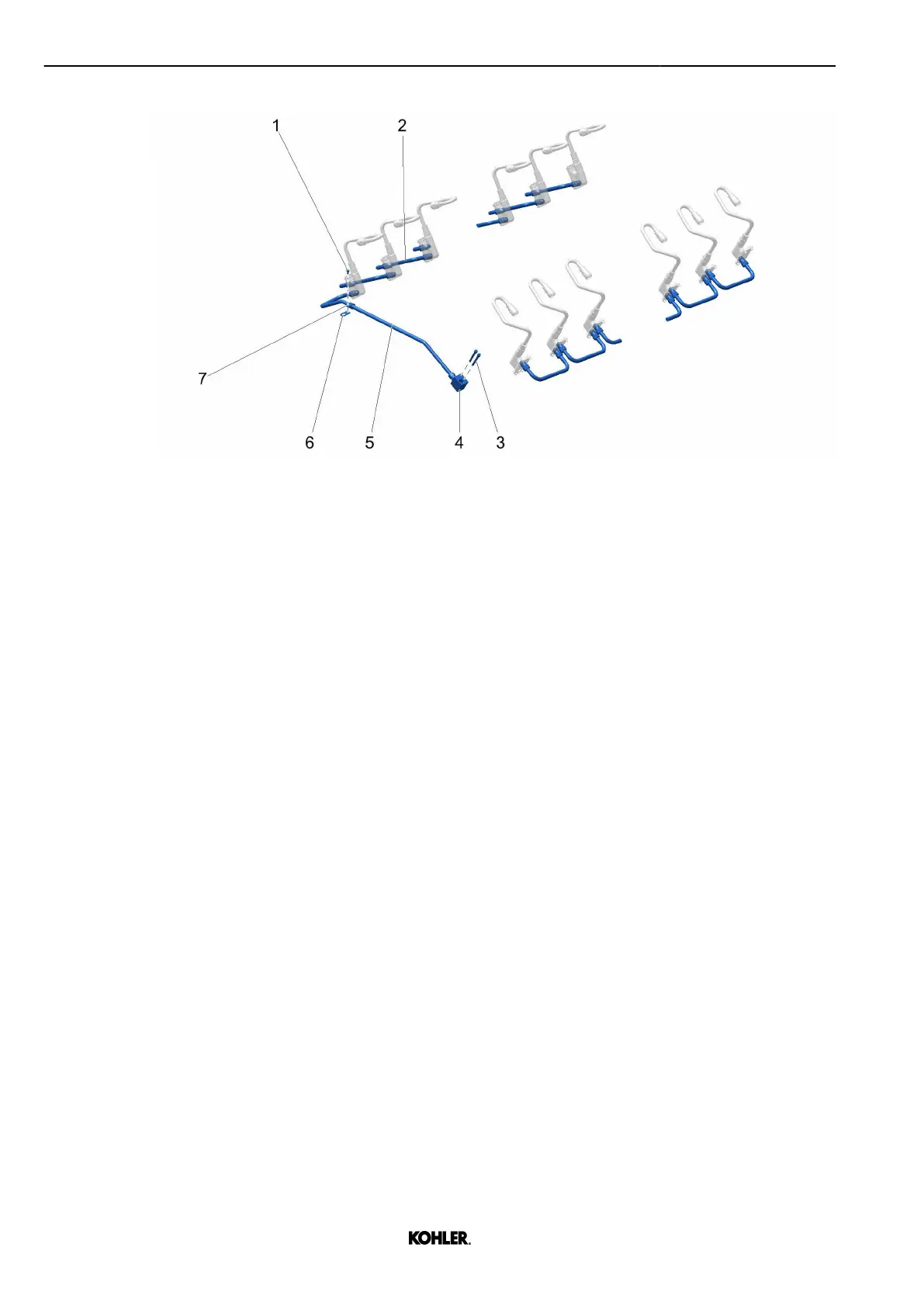

Fig. 121: Installing high pressure piping
u
Lubricate o-rings of fuel pipes 2, 5 with Castrol Optimol Paste White T.
u Lubricate threads and cones of fuel pipes 2, 5 with clean engine oil.
u Install fuel pipes 2, 5.
u Install distributor block 4 with screws 3.
u Install clamp 7 with retaining plate 6 and screw 1.
u Pre-tighten all fuel pipes to torque. (For more information see: Tightening specifications,
page 118.)
u Tighten all fuel pipes and screws to torque. (For more information see: Tightening specifica‐
tions, page 118.)
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3 Standard tightening
torques, page 268.)
