Repair
Fuel system

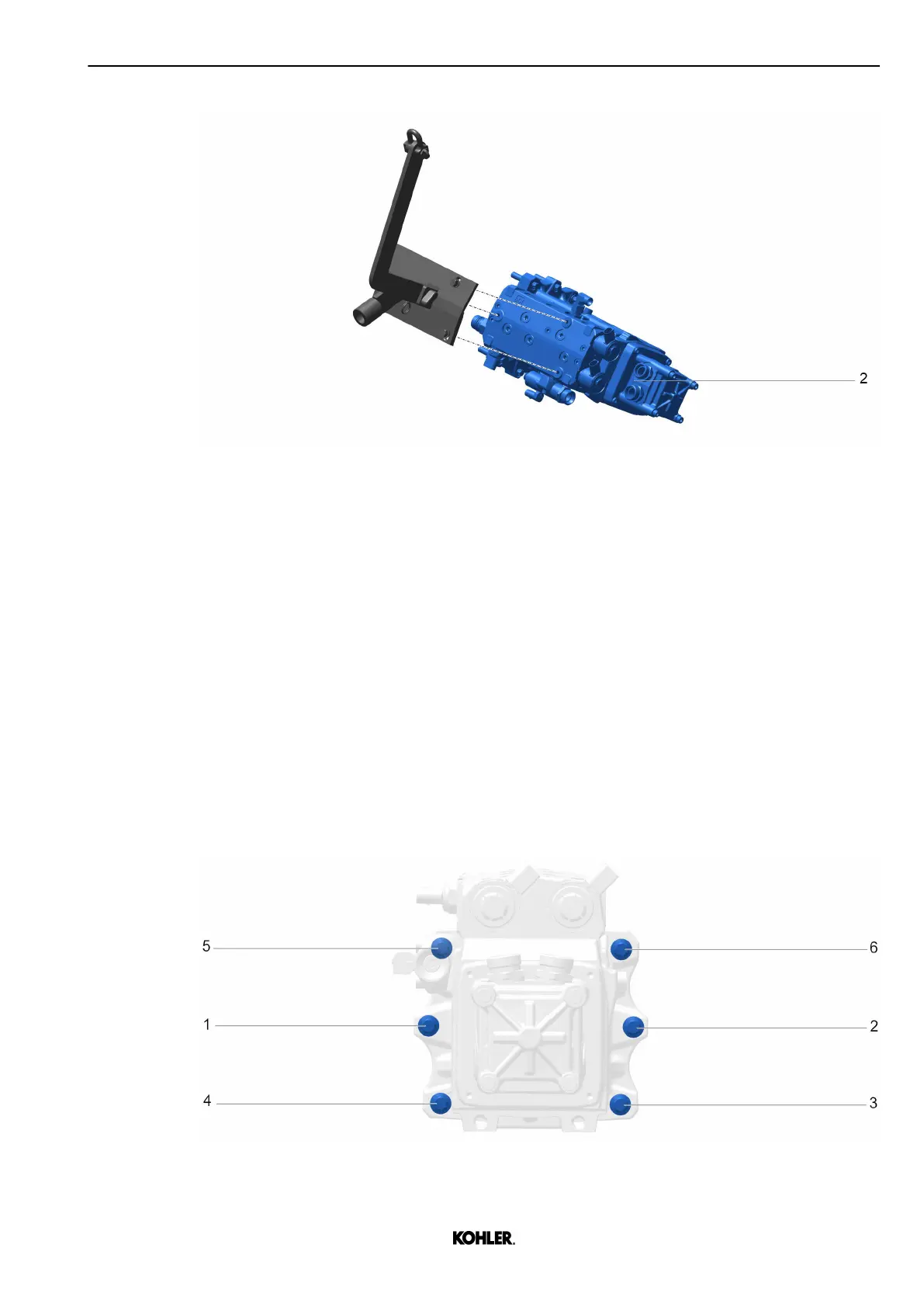

Fig. 147: Installing fuel pump lifting device
u Use lifting device to position fuel pumps into gearbox.
u Place screw 3.
u Remove guiding rods.
u Place remaining screws and remove lifting tools.
u Tighten screws to torque following the given order. (For more information see: Tightening
specifications, page 137.)
u Install HP pump piping.
u Perform the venting on the fuel circuit.
Specific values
Not applicable.
Tightening specifications
Fig. 148: Fuel pump tightening sequence
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
137
