Repair
Charge air system

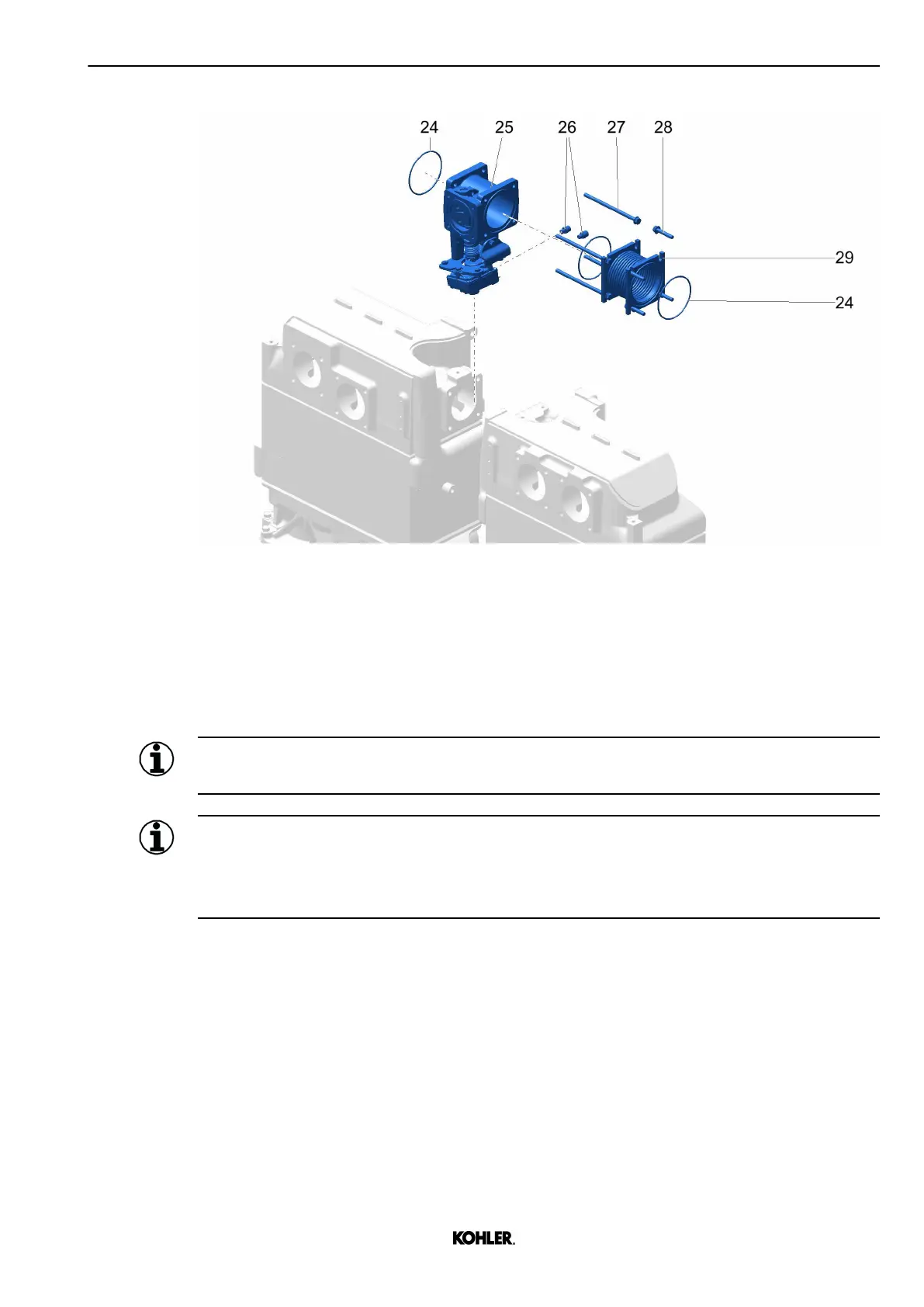

Fig. 157: Removing engine by-pass flap and compensator - With engine by-pass flap
u Remove screws 27, 28.
u Remove compensator 29 with o-rings 24.
u Remove engine by-pass flap 25.
Installation
Information
Preassemble all seals on compensators.
Information
At first, install the whole line without tightening the screws.
Tighten all screws to torque at the end of installation, making sure that compensators are
aligned evenly.
KD62V12 33525088601_8_1 EN_US
2022-09
