Repair
Charge air system

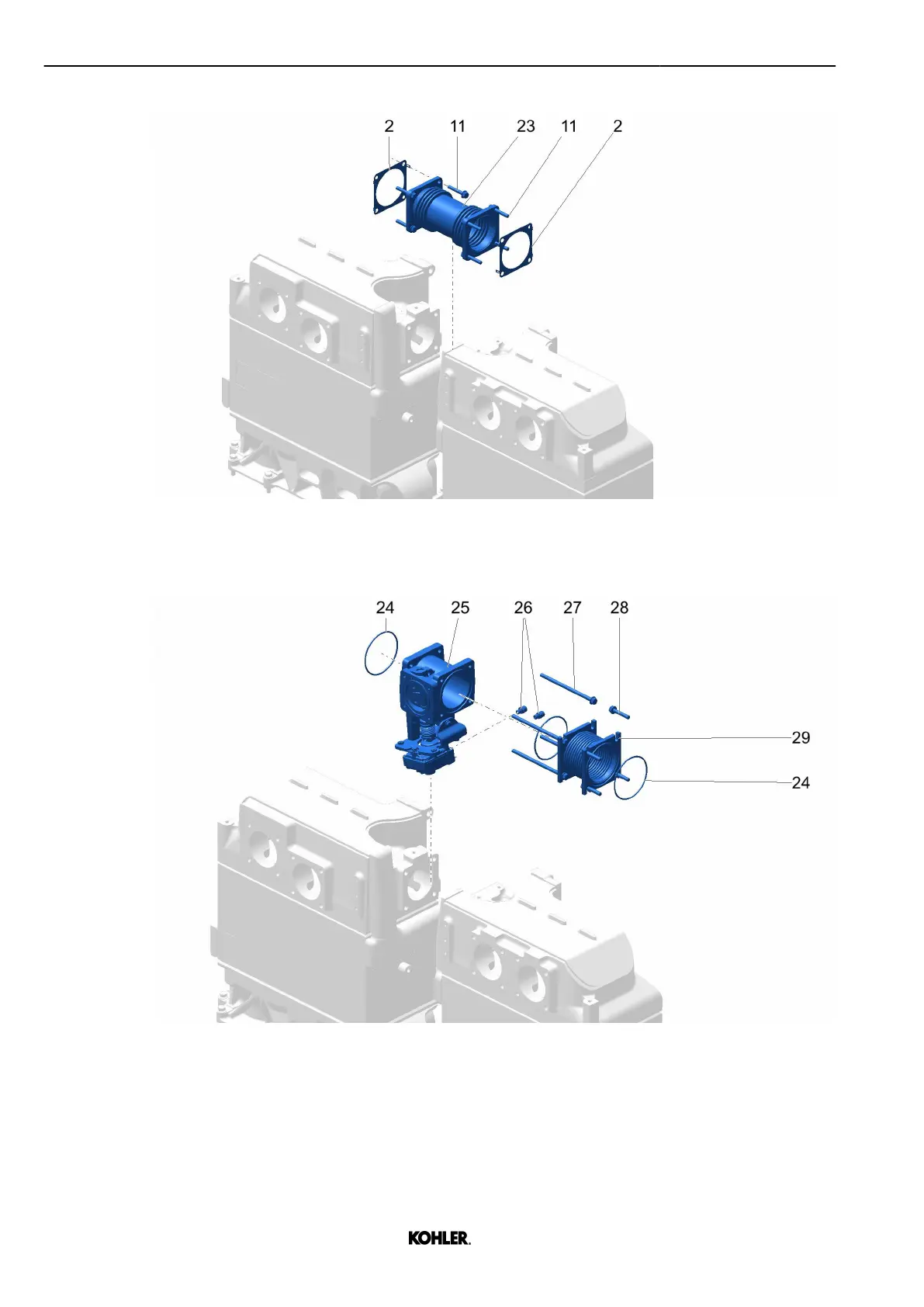

Fig. 161: Installing compensator - Without engine by-pass flap
u Screw compensator 23 with screws 11 and seals 2.
Fig. 162: Installing engine by-pass flap and compensator - With engine by-pass flap
u Install engine by-pass flap 25 and compensator 29 with screws 27, 28 and o-rings 24.
Specific values
Not applicable.
