Repair
Exhaust gas system
Removal
u Remove screws 1 with distance sleeves 2.
u Remove supports 3.
u Remove nuts 7 with clamp segments 6.
u Remove exhaust elbow 4.
Installation
u Install screw plugs 10 with washers 11 into exhaust elbows 4.
u Tighten screw plugs 10 to torque.
u Position exhaust elbow 4 with seal 5 in turbocharger 8, 9 outlet.
u Position clamp segments 6 and hand tight nuts 7.
u Position supports 3 with distance sleeves 2.
u Tighten nuts 7 to torque.
u Tighten screws 1 to torque.
Specific values
Not applicable.
Tightening specifications

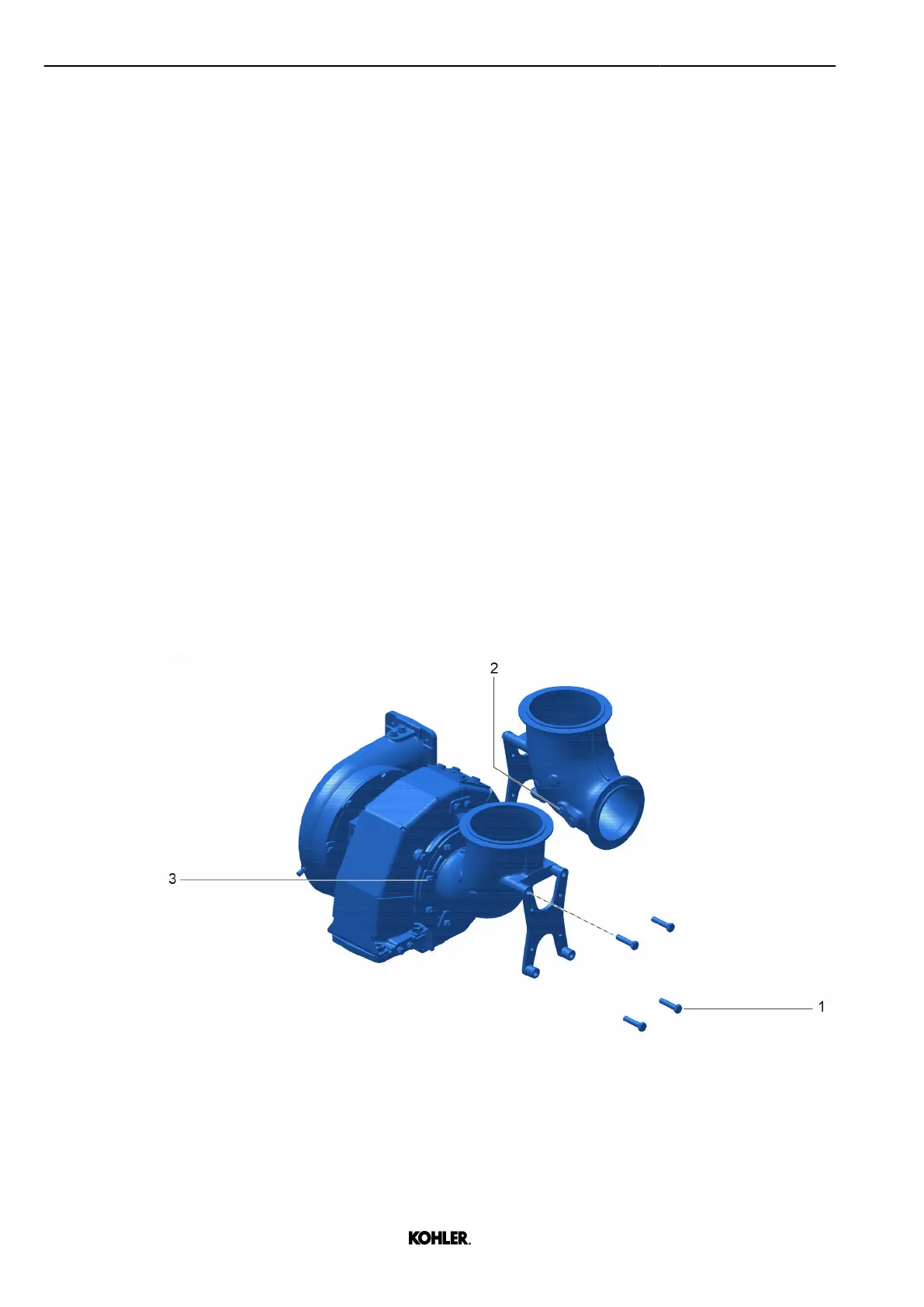

Fig. 170: Exhaust pipes
158
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
