Repair
Exhaust gas system
Specific safety instructions
WARNING
Risk of injuries by contact with hot surfaces!
Engine is hot near operating temperature.
u Avoid any contact with the engine, parts carrying hot coolant or oil, the exhaust system, the
turbocharger, the heat protection, the battery and the covers.
u After the temperature has cooled down to a level it can be touched, proceed with the tasks
on the engine.
NOTICE
Risk of property damage by reuse of sealing.
Leakage by faulty seal.
u Replace all sealings.
Special tools
Not applicable.
Overview

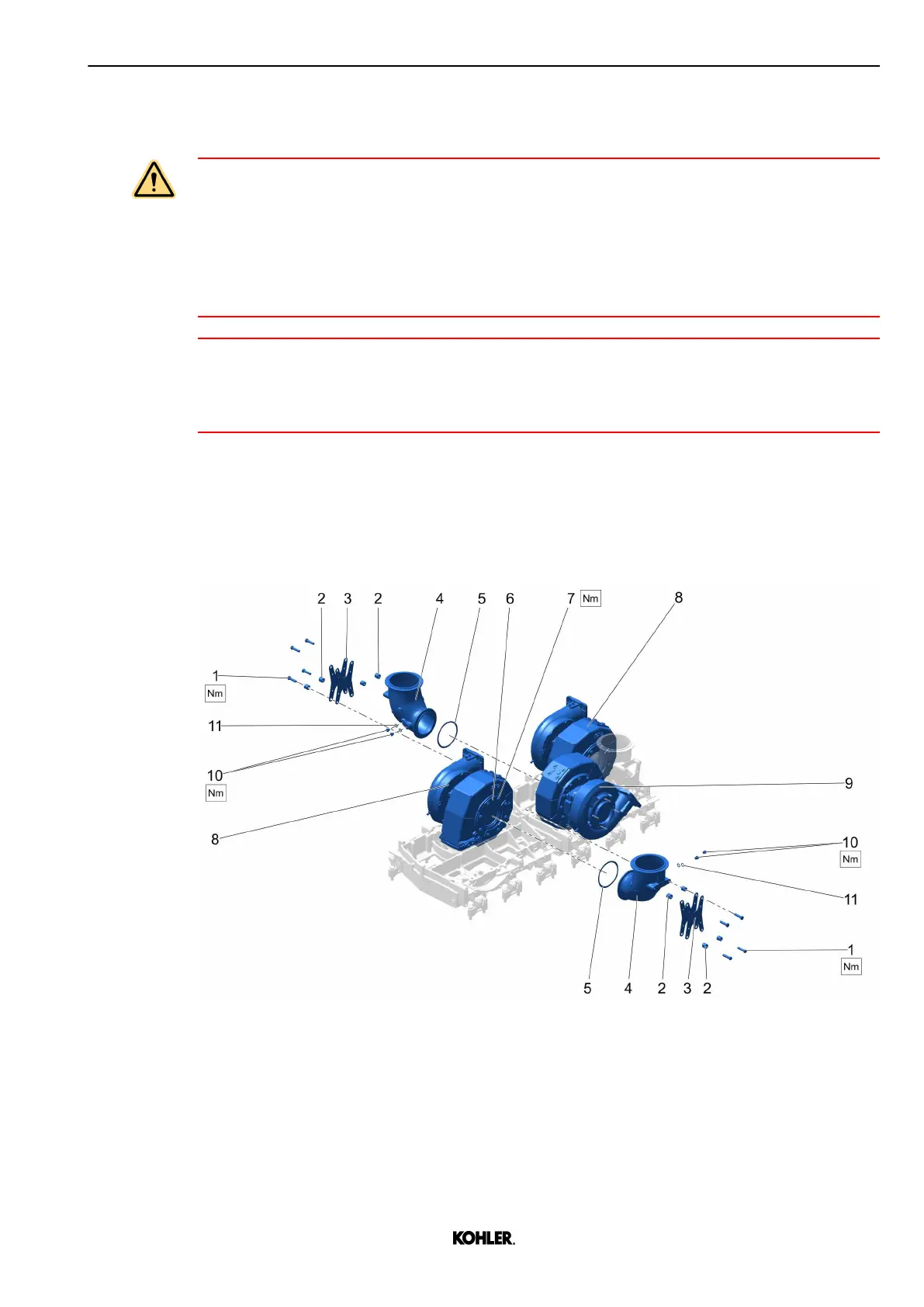

Fig. 169: Task overview
1
Screw (M12) 7 Nut (M10)
2 Distance sleeve 8 Turbocharger
3 Support 9 Turbocharger
4 Exhaust elbow 10 Screw plug
5 Seal 11 Washer
6 Clamp segment
