Repair
Exhaust gas system
Consumables and equipment
– Hot temperature grease
– Rags
– Cleaner
Overview

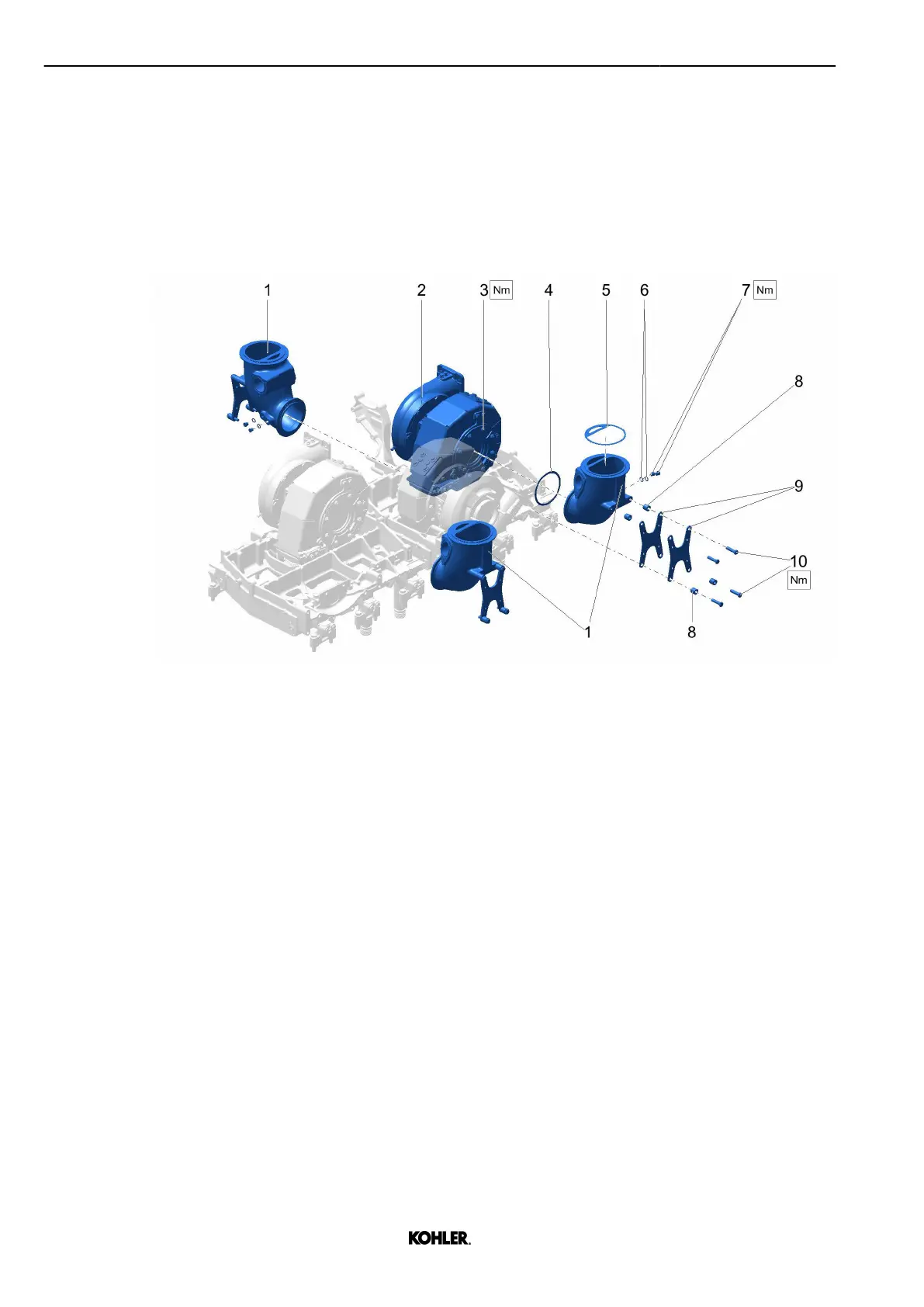

Fig. 171: Task overview
1
Exhaust elbow 6 Washer
2 Exhaust gas turbocharger 7 Screw plug
3 Nut (M10) 8 Distance sleeve
4 Seal 9 Retaining plate
See next page for continuation of the image legend
160
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
