Kohler KD62V12 - Page 161

Repair
Exhaust gas system
5 Orifice plate 10 Screw (M12)

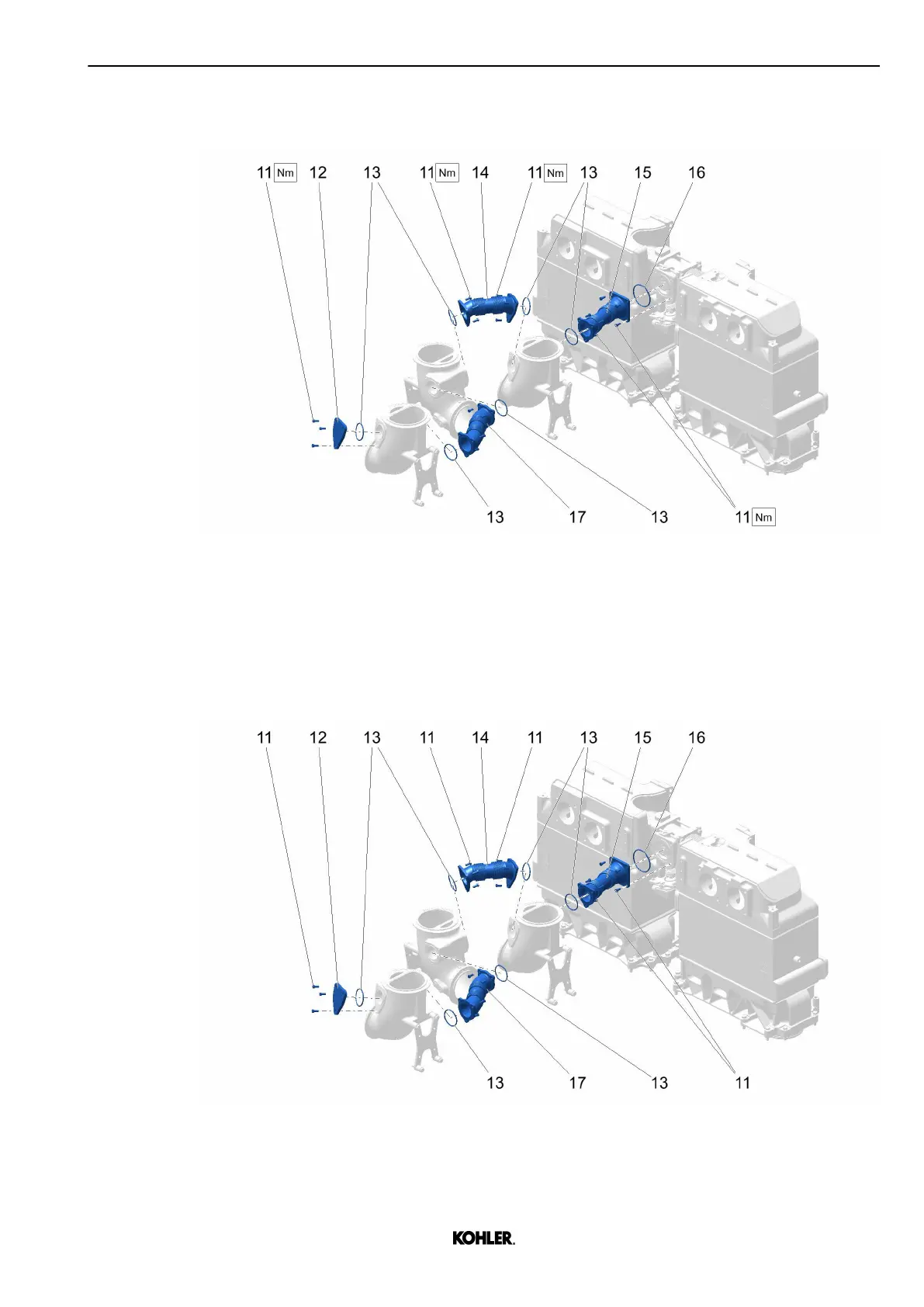

Fig. 172: Task overview
11
Screw (M8) 15 Compensator
12 Cover 16 O-ring
13 O-ring 17 Compensator
14 Compensator
Removal
Fig. 173: Removing compensators
u Remove screws 11.
KD62V12 33525088601_8_1 EN_US
2022-09
