Repair
Exhaust gas system
Information
During lifting, make sure the turbocharger does not tilt.
Before installation, the turbocharger should be perfectly aligned with the exhaust pipe connec‐
tion.

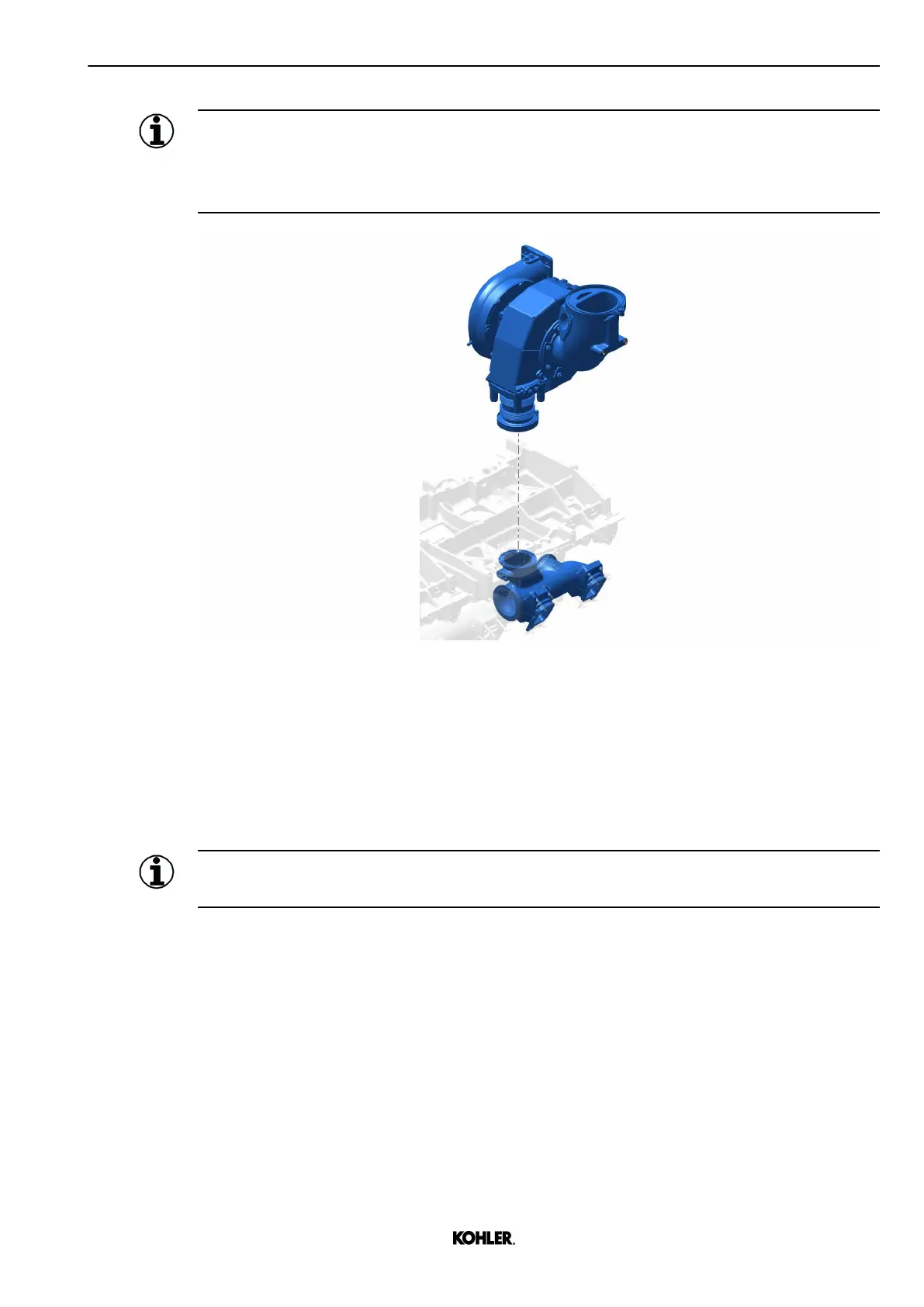

Fig. 181: Aligning turbocharger with exhaust pipe connection
u Position the turbocharger on the bracket so that the compensator is aligned with the
exhaust pipe connection.
u Tighten screws 1 with washers 2 to torque.
u Install V-clamp 9 on exhaust pipe connection to compensator 6 and tighten to torque.
u Install turbocharger cooling lines. (For more information see: 3.12.2 Turbocharger cooling
lines removal and installation, page 206.)
Information
Vent coolant circuit at the end of installation.
Specific values
Not applicable.
