Kohler KD62V12 User Manual

Repair
Exhaust gas system
Tightening specifications

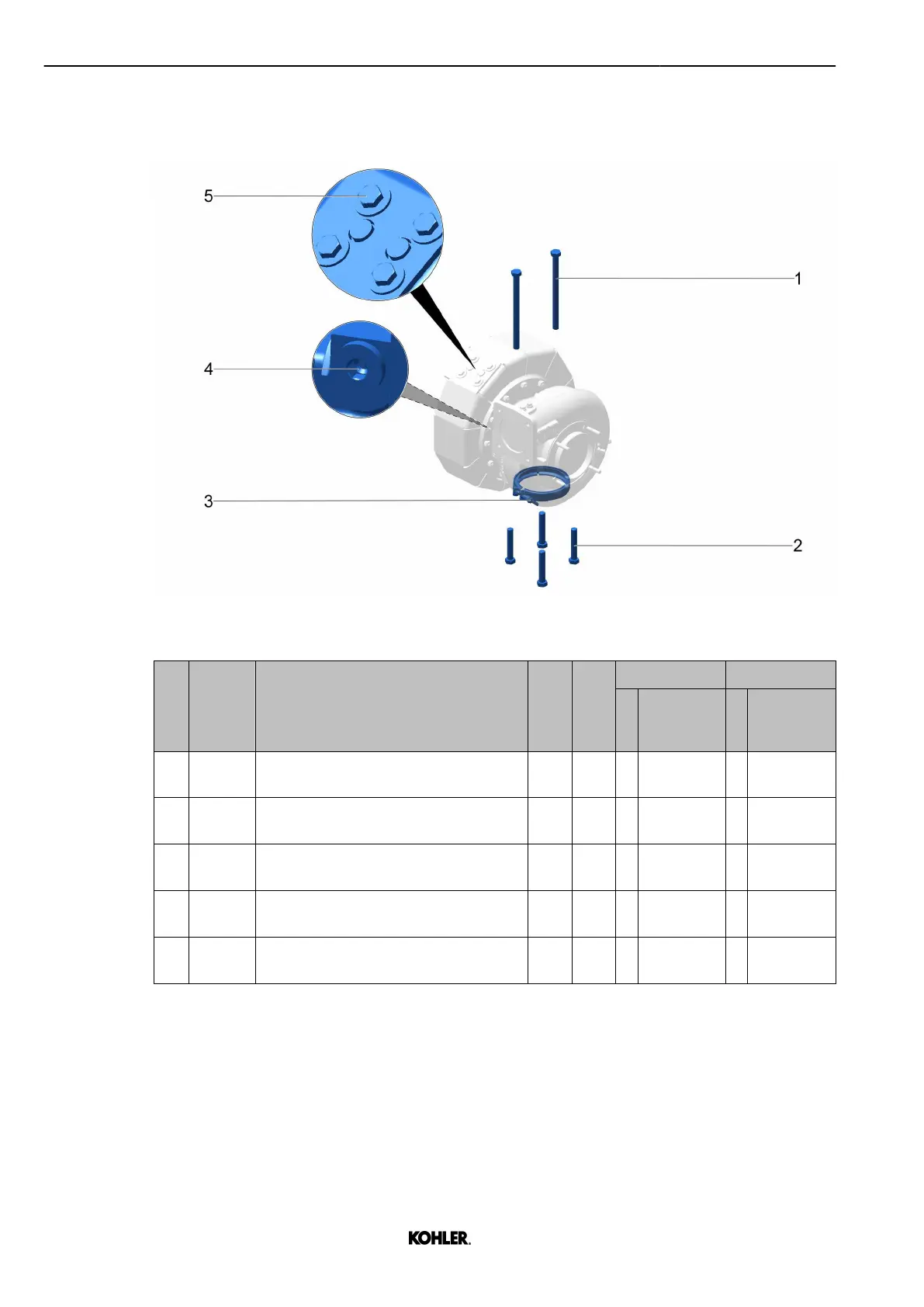

Fig. 182: Turbocharger screws
Reference
Key
Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 430AB ISO 4014 M16x2x220-10.9-FLZN MH Yes 1 230 Nm
170 ft-lb
- -
2 430AD M16x2x90-C3J MH No 1 120 Nm
89 ft-lb
- -
3 430AE M8x1.25 MH Yes 1 20 Nm
15 ft-lb
- -
4 430AF M22x1.5 O Yes 1 90 Nm
66 ft-lb
- -
4 430AG M10x1.5 - Yes 1 20 Nm
15 ft-lb
- -
Tab. 36: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
170
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
