Kohler KD62V12

Repair
Exhaust gas system

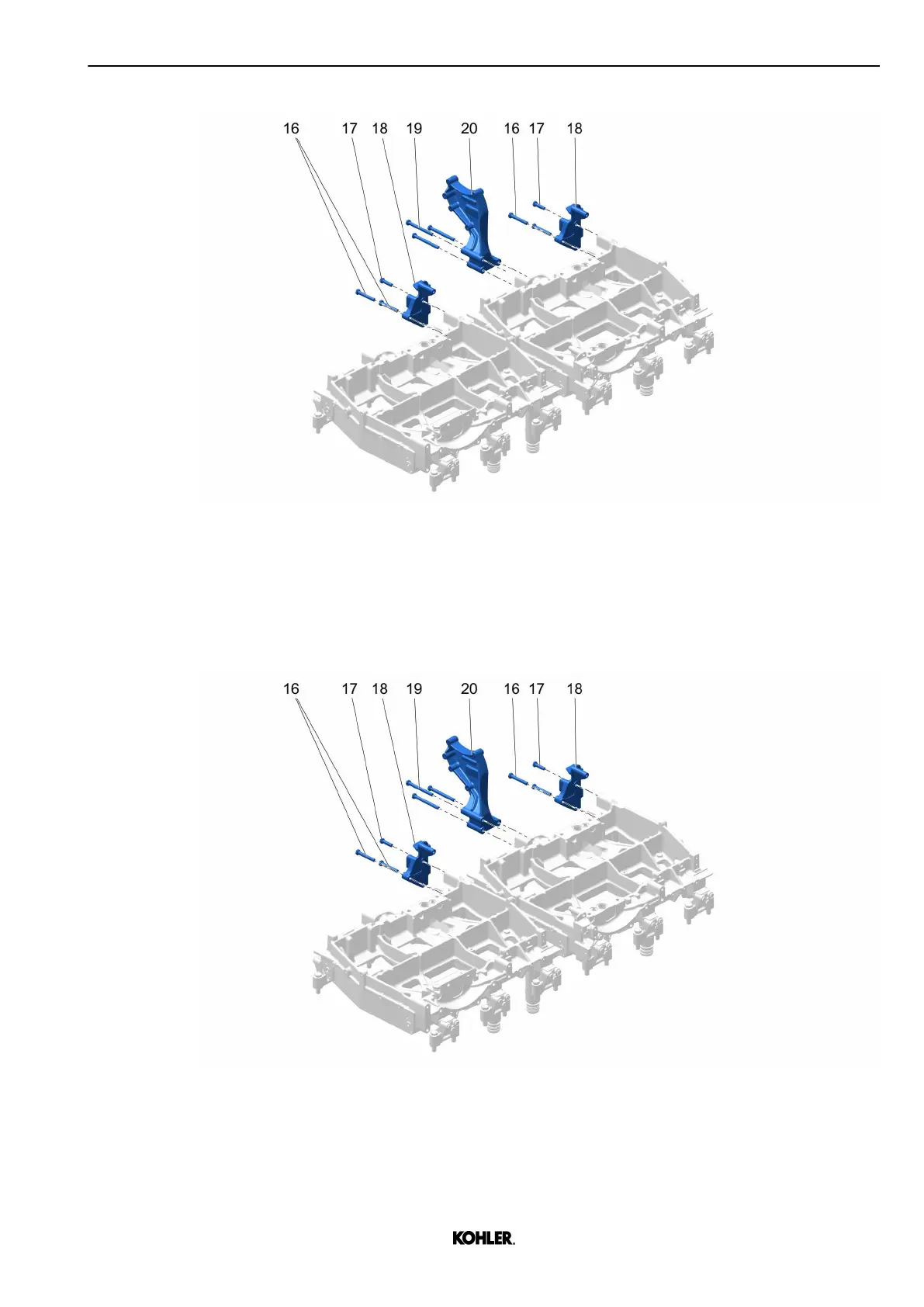

Fig. 190: Task overview
16
Screw (M12) 19 Screw (M12)
17 Screw (M12) 20 Holder
18 Holder
Removal
Fig. 191: Removing holders
u Remove screws 16, 17.
u Remove holders 18.
u Remove screws 19.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
177
