Kohler KD62V12

Repair
Cooling system
Removal

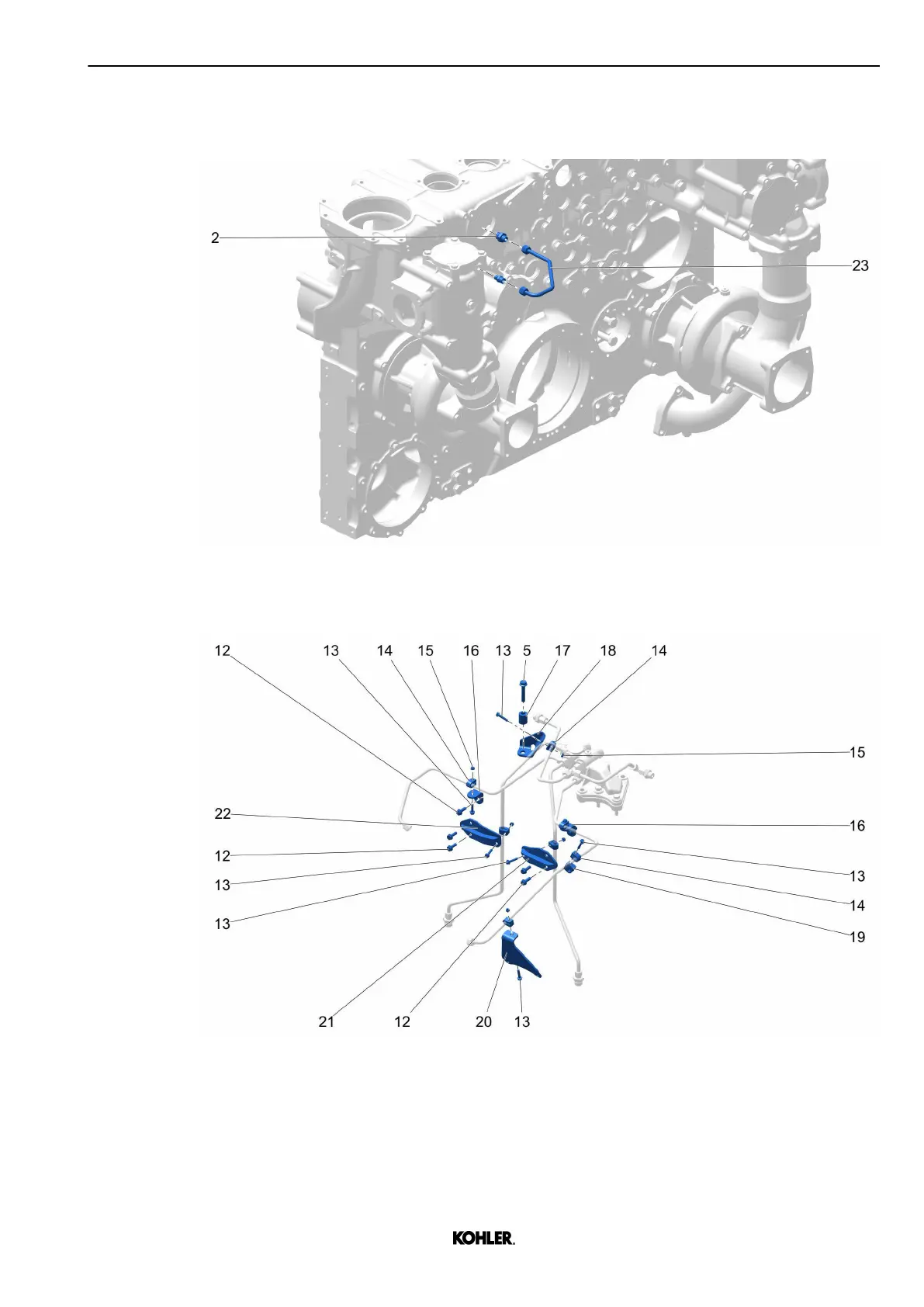

Fig. 215: Removing venting lines
u Remove venting line 23 with flange joints 2.
Fig. 216: Removing venting lines
u Remove clamps 14 with screws 13, and nuts 15.
u Remove holders 16, 18, 19, 20, 21, 22 with screws 5, 12, and distance sleeve 17.
