Kohler KD62V12 User Manual

Repair
Cooling system

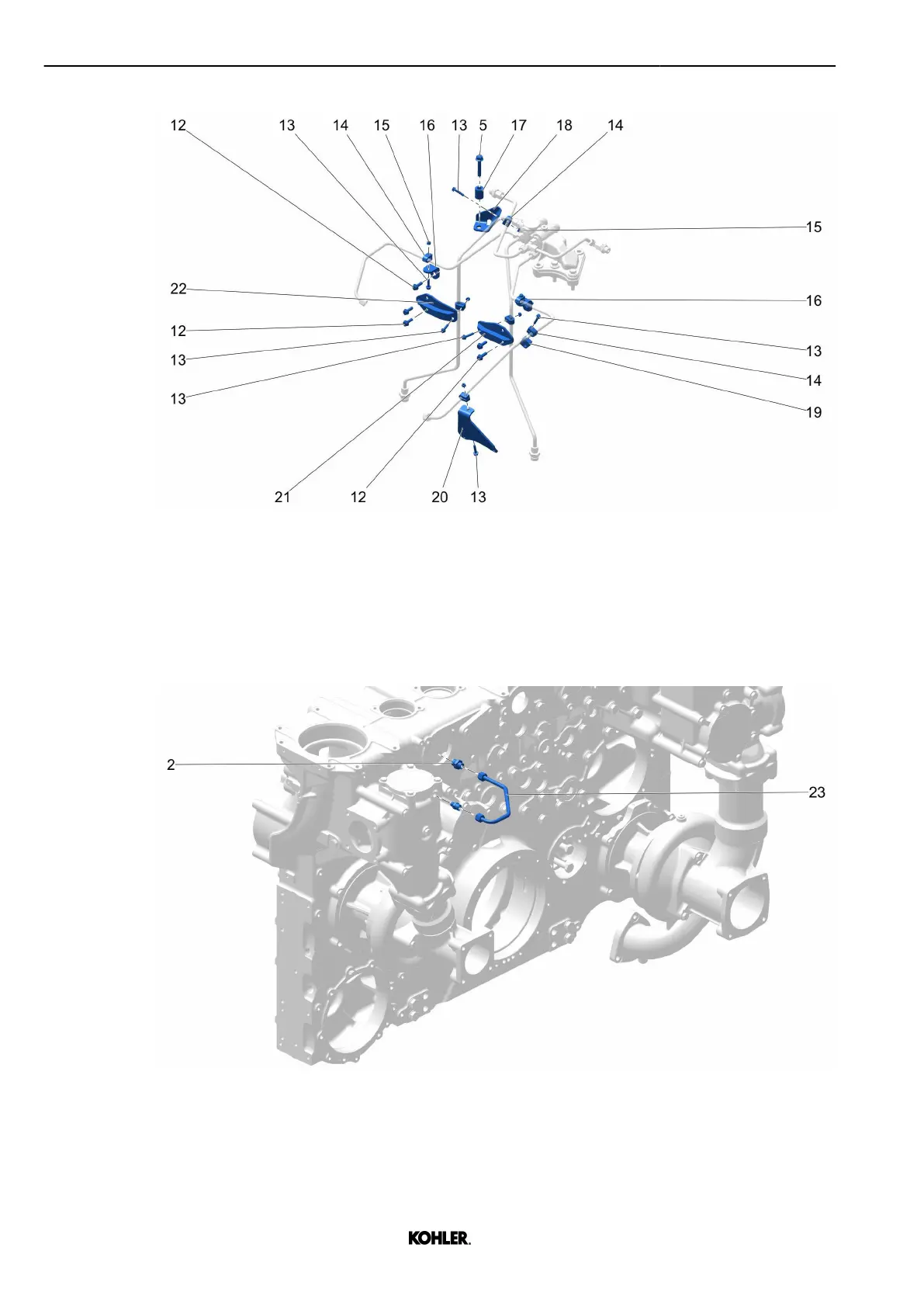

Fig. 213: Task overview
12
Screw (M8) 18 Holder
13 Screw (M6) 19 Holder
14 Clamp 20 Holder
15 Nut (M6) 21 Holder
16 Holder 22 Holder
17 Distance sleeve
Fig. 214: Task overview
23
Venting line
202
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
