Repair
Cooling system
Turbocharger coolant supply

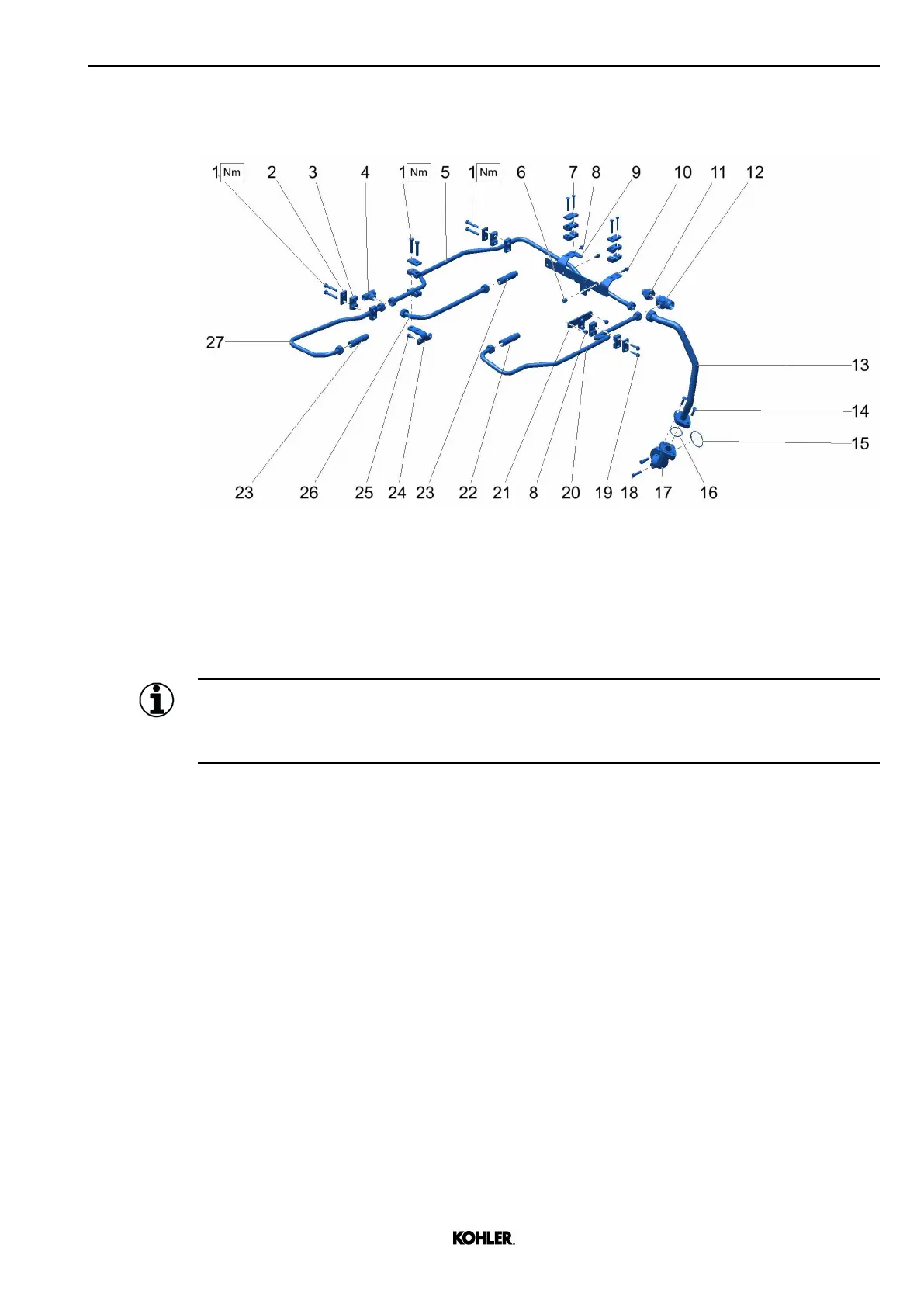

Fig. 226: Installing pipes
u Screw aggregate support connector 17 with screws 18 and o-ring 15.
u Install pipe 13 with screws 14 and o-ring 16.
u Mount pipes 5, 13, 20, 27 with T connectors 4, 12 and flange joint 11.
u Install fittings 22, 23.
Information
Fittings 22, 23 have different internal diameters, depending on the side of the engine.
Make sure to install the correct kind of fitting on the correct side of the engine.
u Screw retaining plate 9 with screws 8, 10 and distance sleeve 6.
u Install plates 2 and clamps 3 with screws 1, 7.
u Tighten screws 1 to torque.
u Screw retaining plates 21, 24 with screws 8, 25.
Specific values
Not applicable.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
211
