Repair
Cooling system
Installation
Turbocharger coolant return

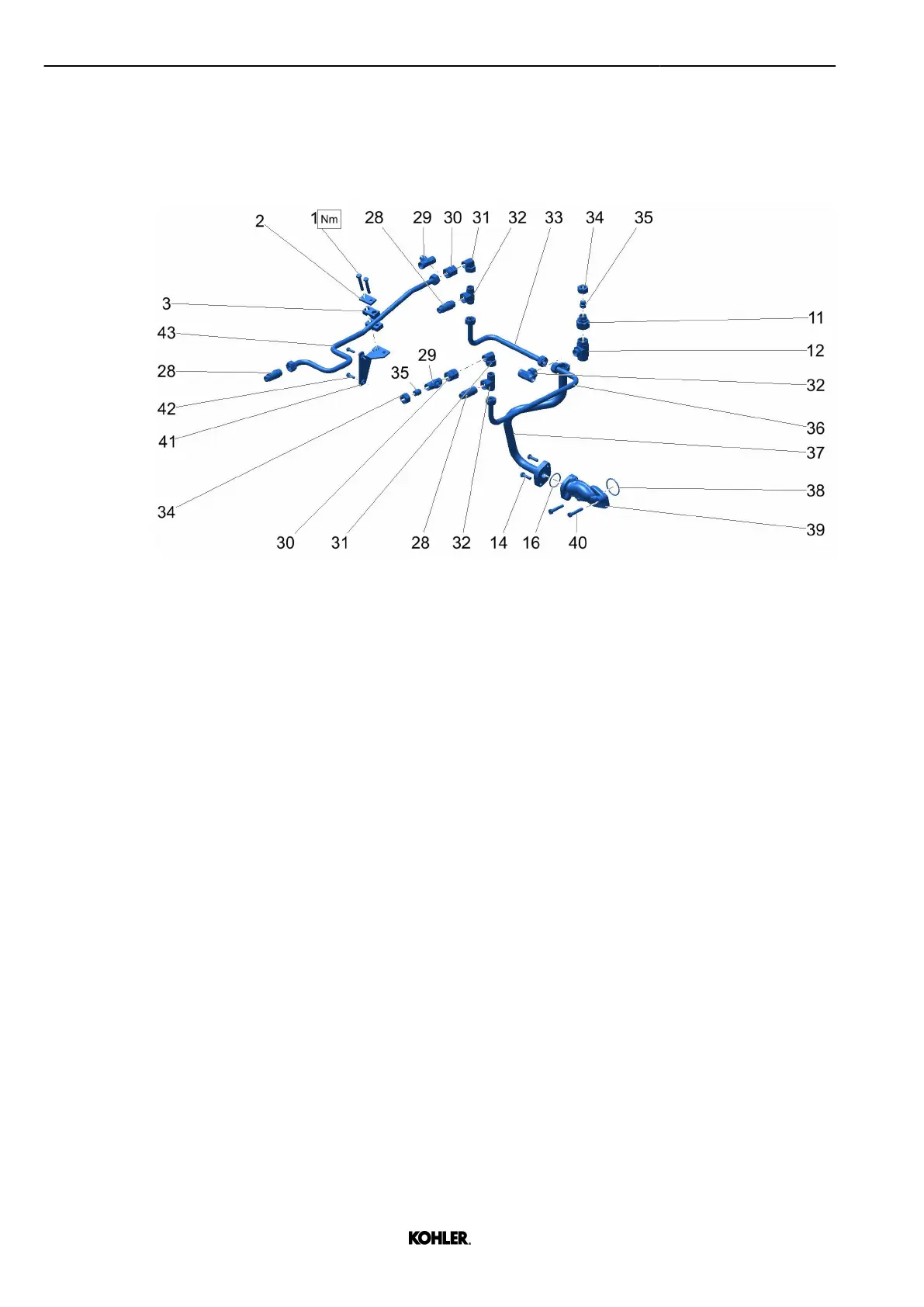

Fig. 225: Installing pipes
u Screw aggregate support connector 39 with screws 40 and o-ring 38.
u Install pipe 37 on aggregate support connector 39 with screws 14 and o-ring 16.
u Mount pipes 33, 36, 37, 43 with connectors 12, 29, 31, 32 and flange joints 11, 30.
u Install plugs 35 with nuts 34 on T connectors 12, 29 and flange joint 11.
u Install retaining plate 41 with screws 42.
u Install plates 2 with clamps 3 and screws 1.
u Tighten screws 1 to torque.
210
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
