Kohler KD62V12

Repair
Cooling system
u Remove pipes 32, 33, 37, 38, 42, 46.
u Disconnect fittings, flange joints, and connectors.
Installation

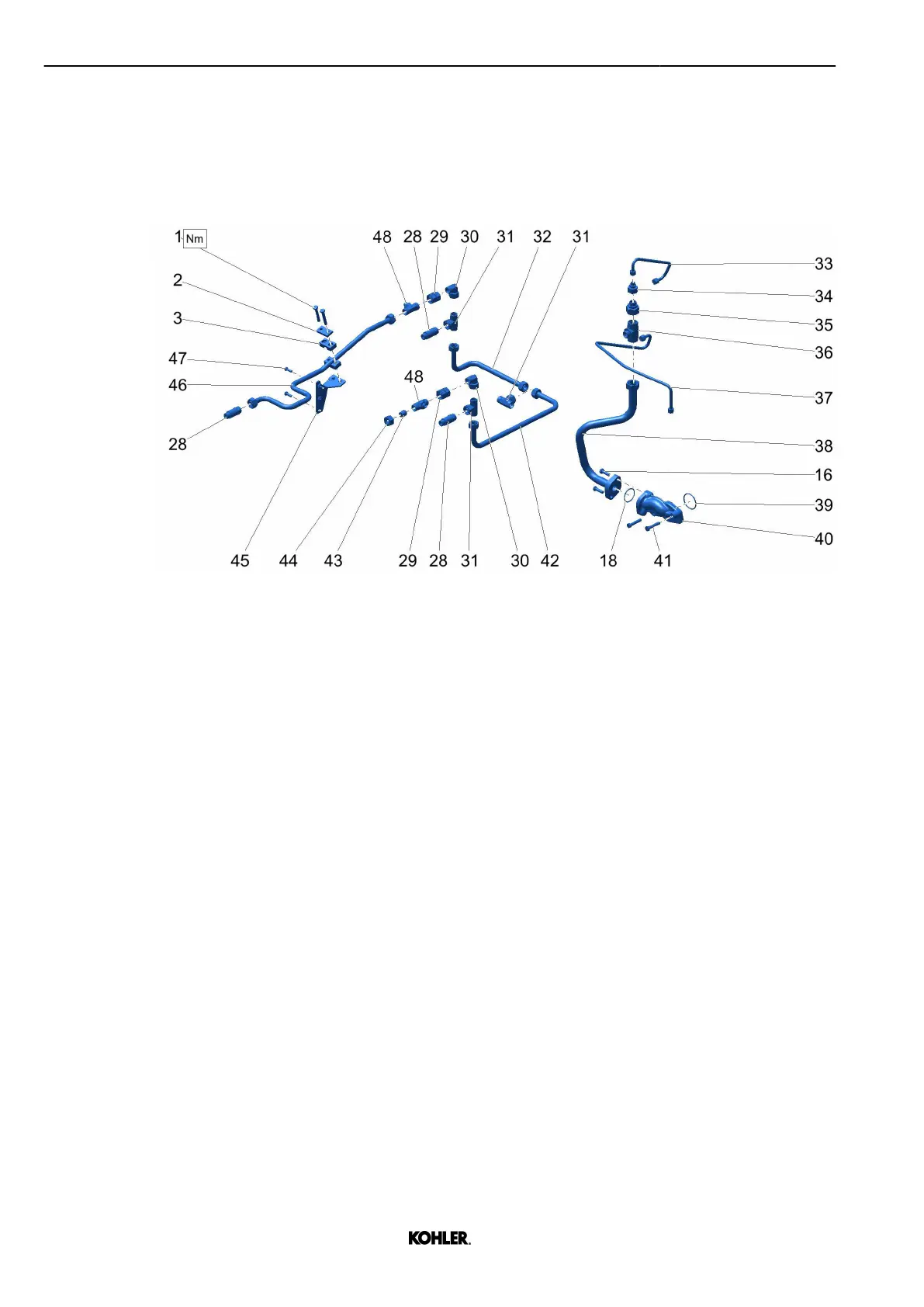

Fig. 232: Installing pipes
u Install aggregate support connector 40 with screws 41 and new o-ring 39.
u Install pipe 38 on aggregate support connector 40 with screws 16 and new o-ring 18.
u Install T connector 36 and flange joint 35 with coupling 34 between pipes 33, 37, 38.
u Install pipes 32, 42 with T connectors 31.
u Install 90° connectors 30, fittings 29, and T connectors 48 on T connectors 31.
u Install pipe 46 on T connector 48.
u Install fittings 28.
u Install plug 43 and nut 44.
u Install retaining plates 45 with screws 47.
u Install plates 2 and clamps 3 with screws 1.
