Repair
Cooling system

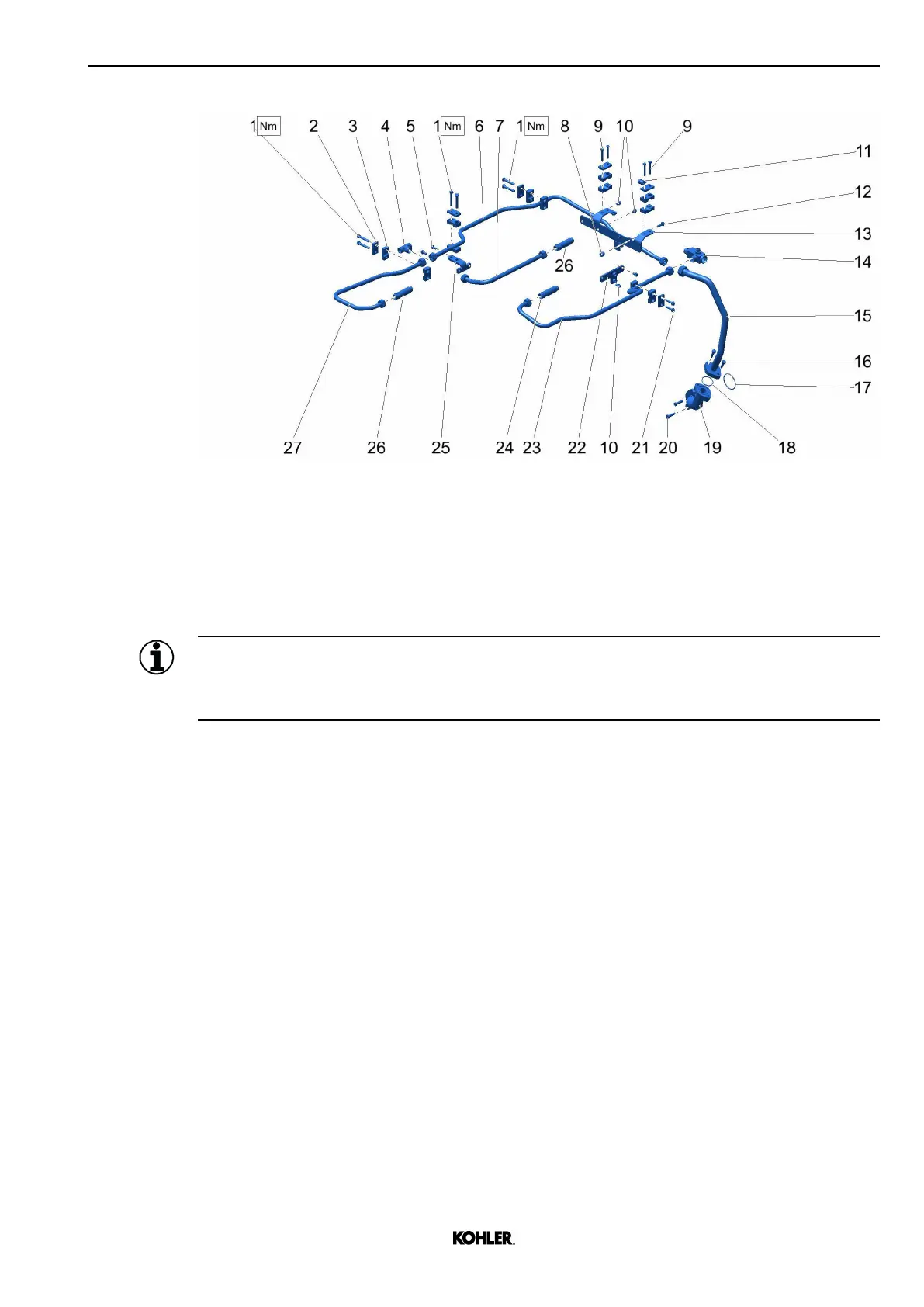

Fig. 233: Installing pipes
u Install aggregate support connector 19 with screws 20 and o-ring 17.
u Install pipe 15 with screws 16 and o-ring 18.
u Install pipes 6, 7, 15, 23, 27 with T connectors 4 and adaptor 14.
u Install fittings 24, 26.
Information
Fittings 24, 26 have different internal diameters, depending on the side of the engine.
Make sure to install the correct kind of fitting on the correct side of the engine.
u Install retaining plate 13 with screws 10, 12 and distance sleeve 8.
u Install plates 2, clamps 3, clamp 11 with screws 9.>
u Install retaining plate 22 with screws 10.
u Install plate 2 and clamps 3 with screws 21.
u Install retaining plate 25 with screws 5.
u Install plates 2 and clamps 3 with screws 1.
Specific values
Not applicable.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
217
