Repair
Exhaust gas aftertreatment system (depending on configuration)

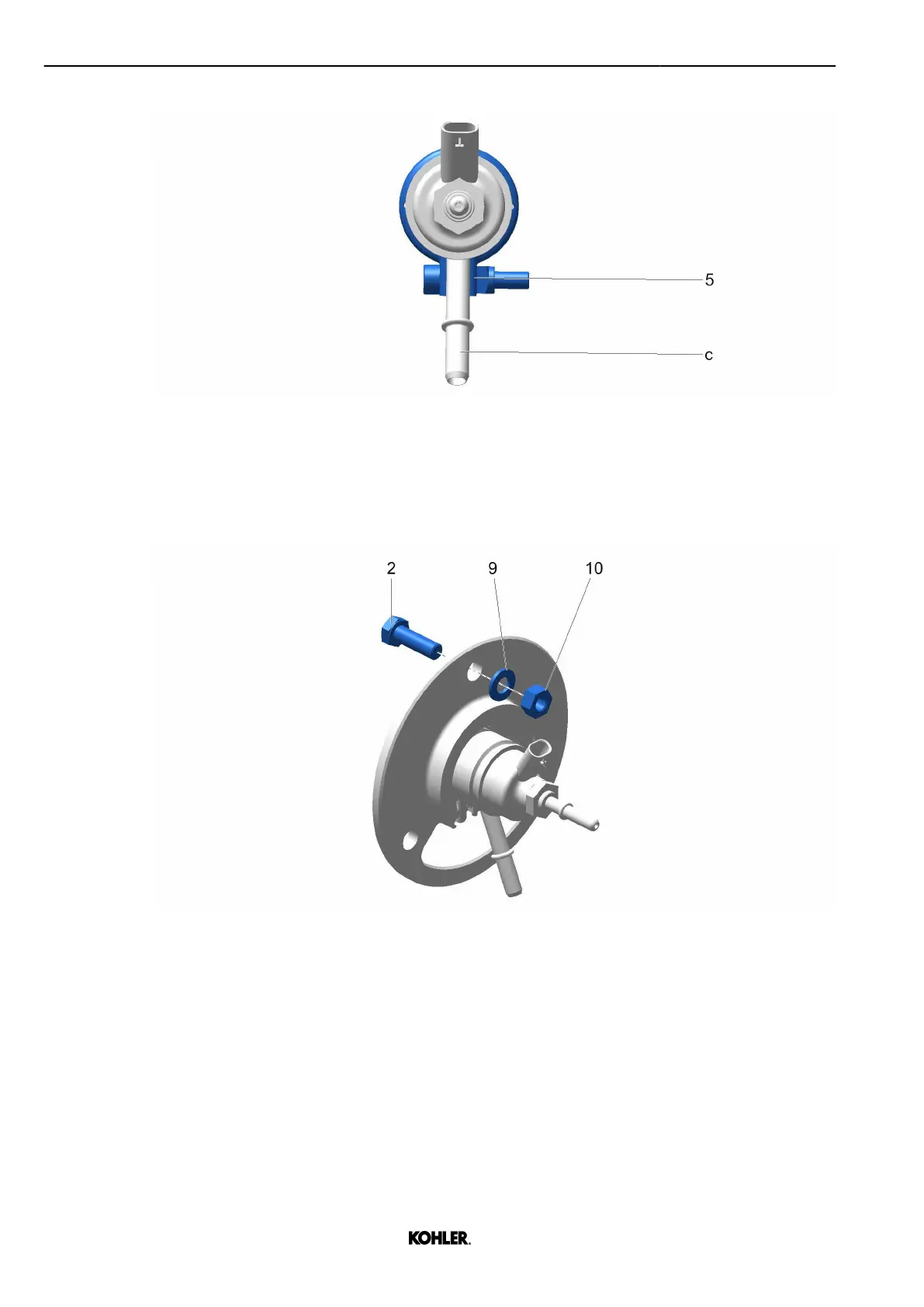

Fig. 271: Aligning injector with v-clamp
u Align diesel exhaust fluid inlet line c with the center of v-clamp 5 opening.
u Tighten v-clamp nut to 3.7 Nm (3 ft-lb)-4 Nm (3 ft-lb).
u Install front mounting plate 8 on injector assembly.
Fig. 272: Installing top screw
u Apply high temperature grease to the threads of screws 2.
u Install top screw 2 on front mounting plate with nut 10, and washer 9.
u Install new gasket 3 at the back of injector assembly.
