Repair
Exhaust gas aftertreatment system (depending on configuration)
u Loosen v-clamp 5.
u Remove back mounting plate 4 from injector assembly.
u Discard injector 7, and gaskets 3, 6.
Installation
Information
Always make sure that dust is prevented from going into the system.

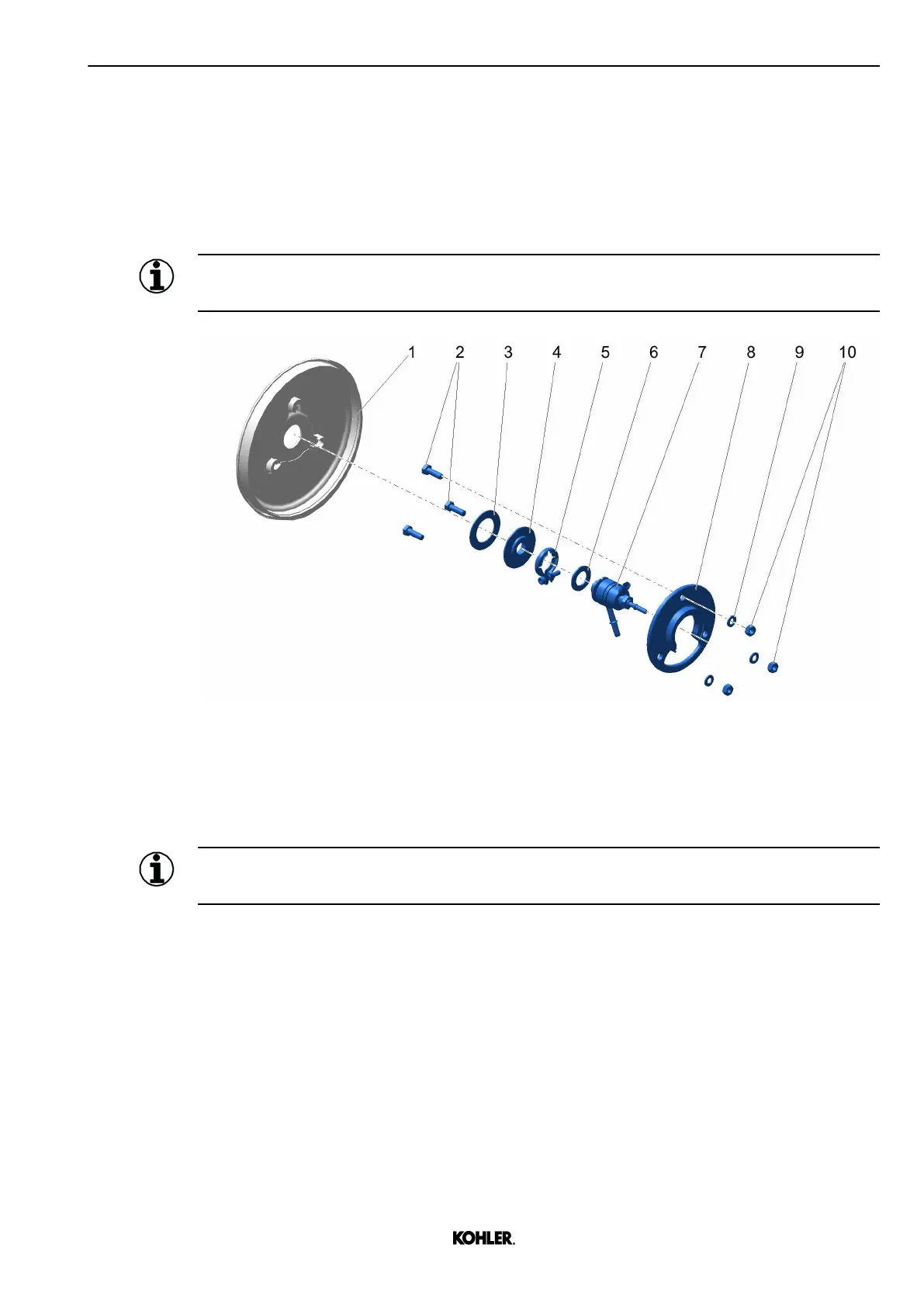

Fig. 270: Installing the injector
u Remove protective caps from new injector 7.
u Install new gasket 6 on injector 7.
u Assemble injector 7, and back mounting plate 4 with v-clamp 5.
Information
Make sure that gasket 6 is located between back mounting plate 4 and injector 7.
