Repair
Exhaust gas aftertreatment system (depending on configuration)

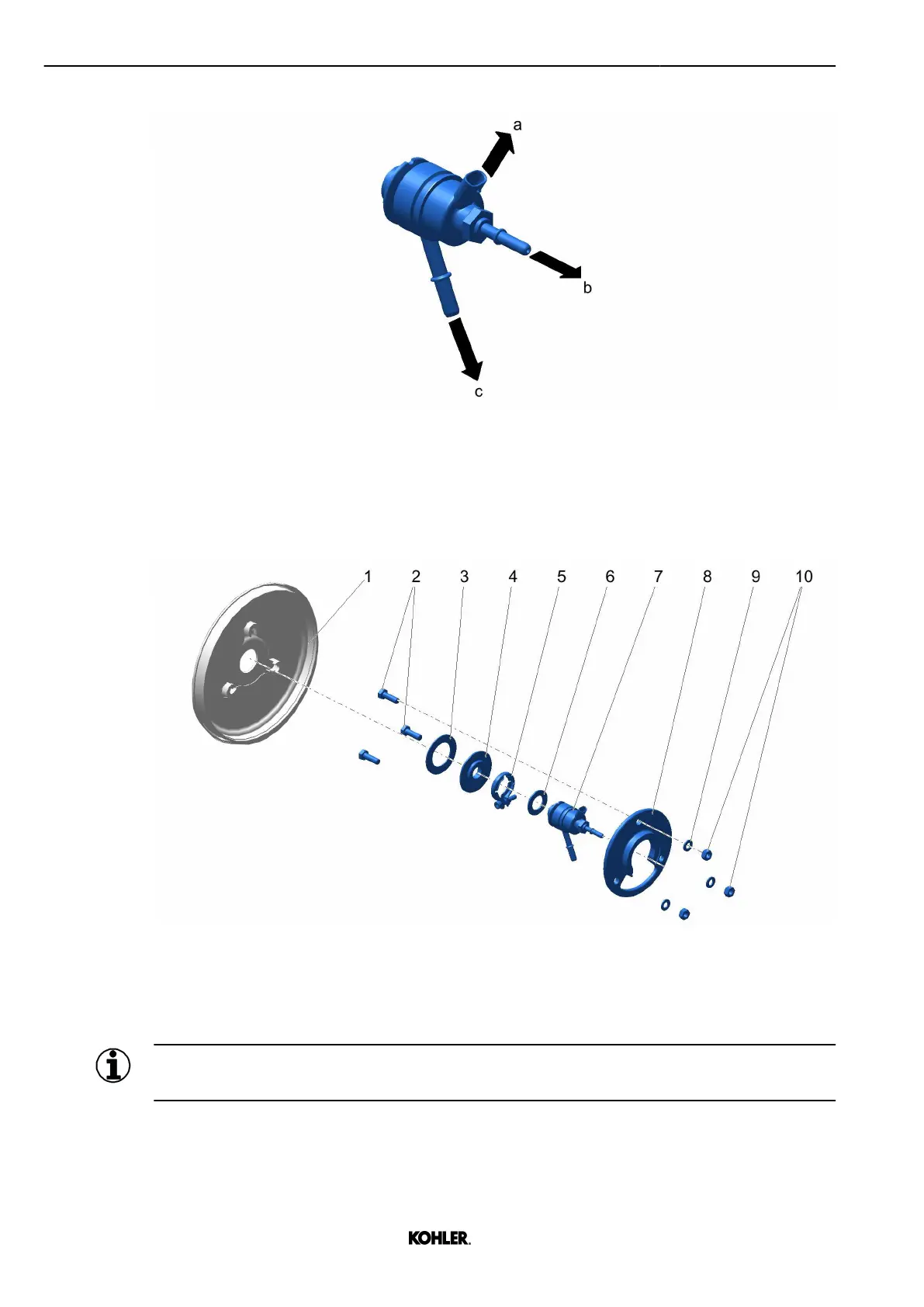

Fig. 268: Disconnecting electrical connector and diesel exhaust fluid lines
u Disconnect electrical connector a from the injector.
u Disconnect diesel exhaust fluid return line b from the injector.
u Disconnect diesel exhaust fluid inlet line c from the injector.
Fig. 269: Removing the injector
u Remove injector fixing nuts 10, and washers 9.
u Remove injector 7, and mounting plates 4, 8 together as an assembly.
Information
Prevent top screw 2 from falling down.
u Remove screws 2.
u Remove front mounting plate 8 from injector assembly.
248
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
