Kohler KD62V12

Repair
Rocker arms

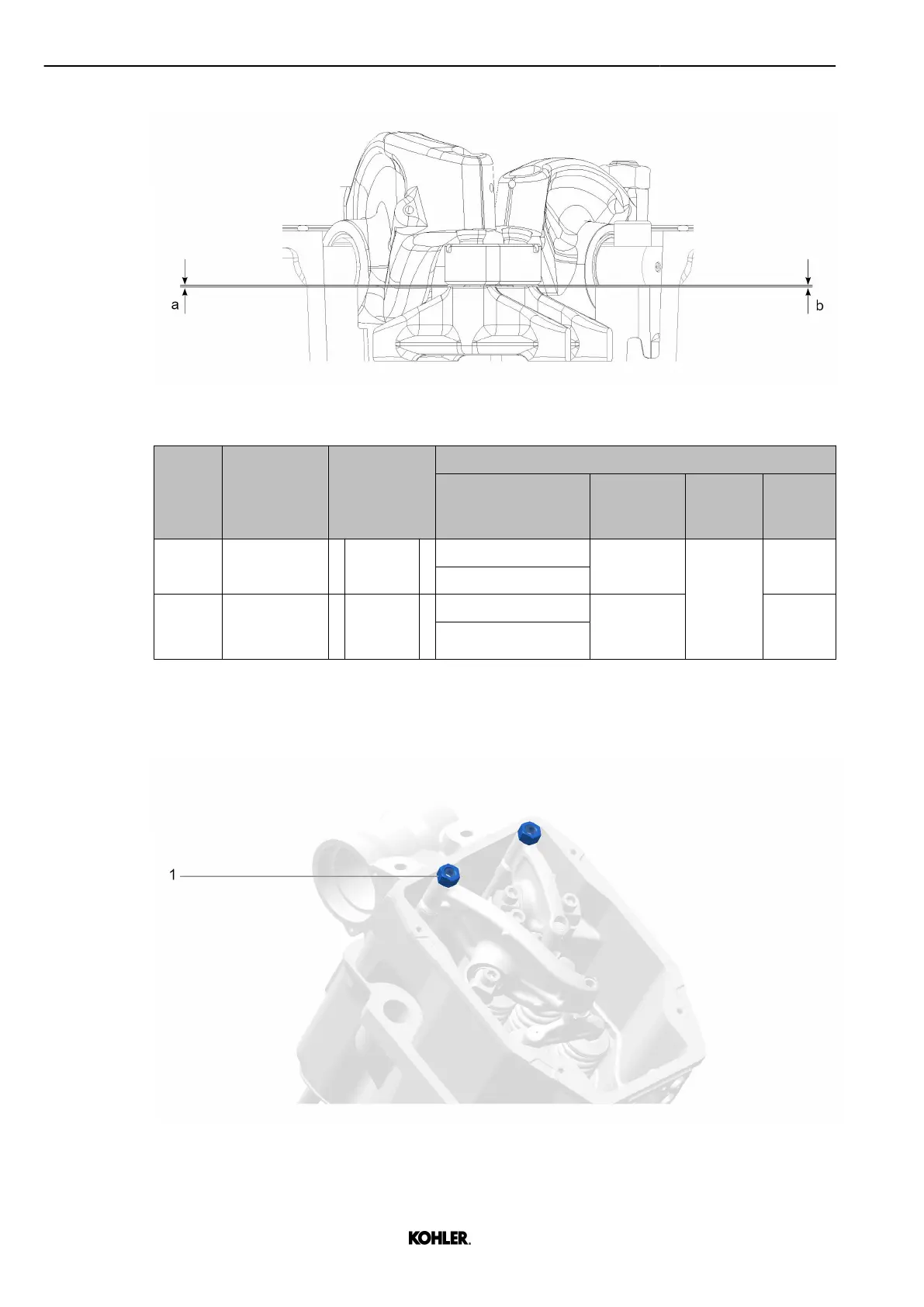

Fig. 58: Valve clearance
Refer‐
ence
Denomina‐
tion
Nominal
value
Tolerance values
Upper value -
Lower value
Maximum
wear
Calcu‐
lated gap
min/max
Actual
value
a Inlet valve/
clearance
500 µm
19.69 th
+100 µm (3.94 th) - - -
0
b Exhaust
valve/ clear‐
ance
1 mm
0.04 in
+100 µm (3.94 th) - -
0
Tab. 14: Tolerance values
Tightening specifications
Fig. 59: Rocker arms locknuts
74
