Rocker arms

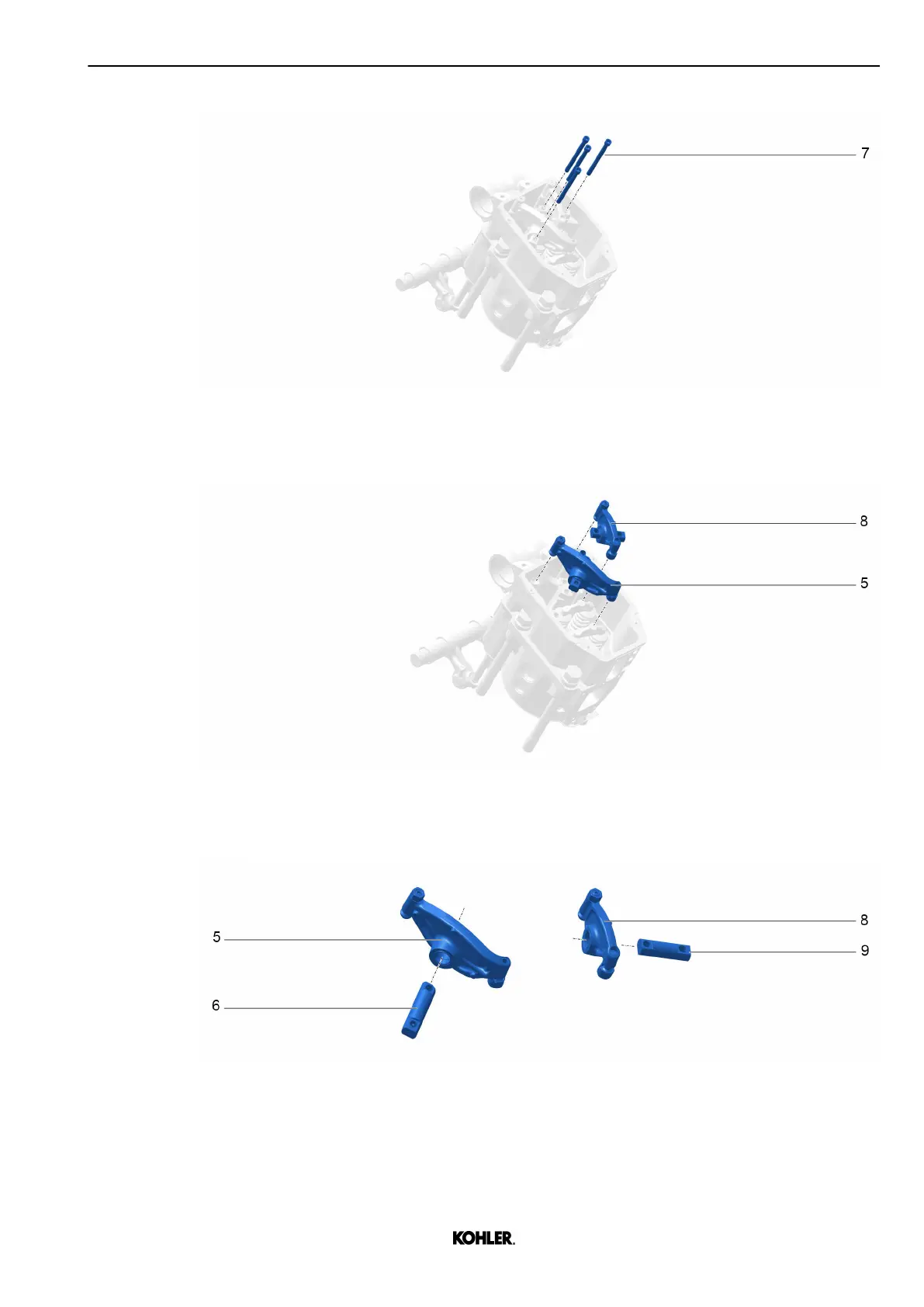

Fig. 62: Removing screws
u Remove screws 7.
Fig. 63: Removing rocker arms
u Remove inlet rocker arm assembly 5 and exhaust rocker arm assembly 8.
Fig. 64: Removing shafts from rocker arms
u Remove inlet shaft 6 from inlet rocker arm 5.
u Remove exhaust shaft 9 from exhaust rocker arm 8.
