Repair
Rocker arms

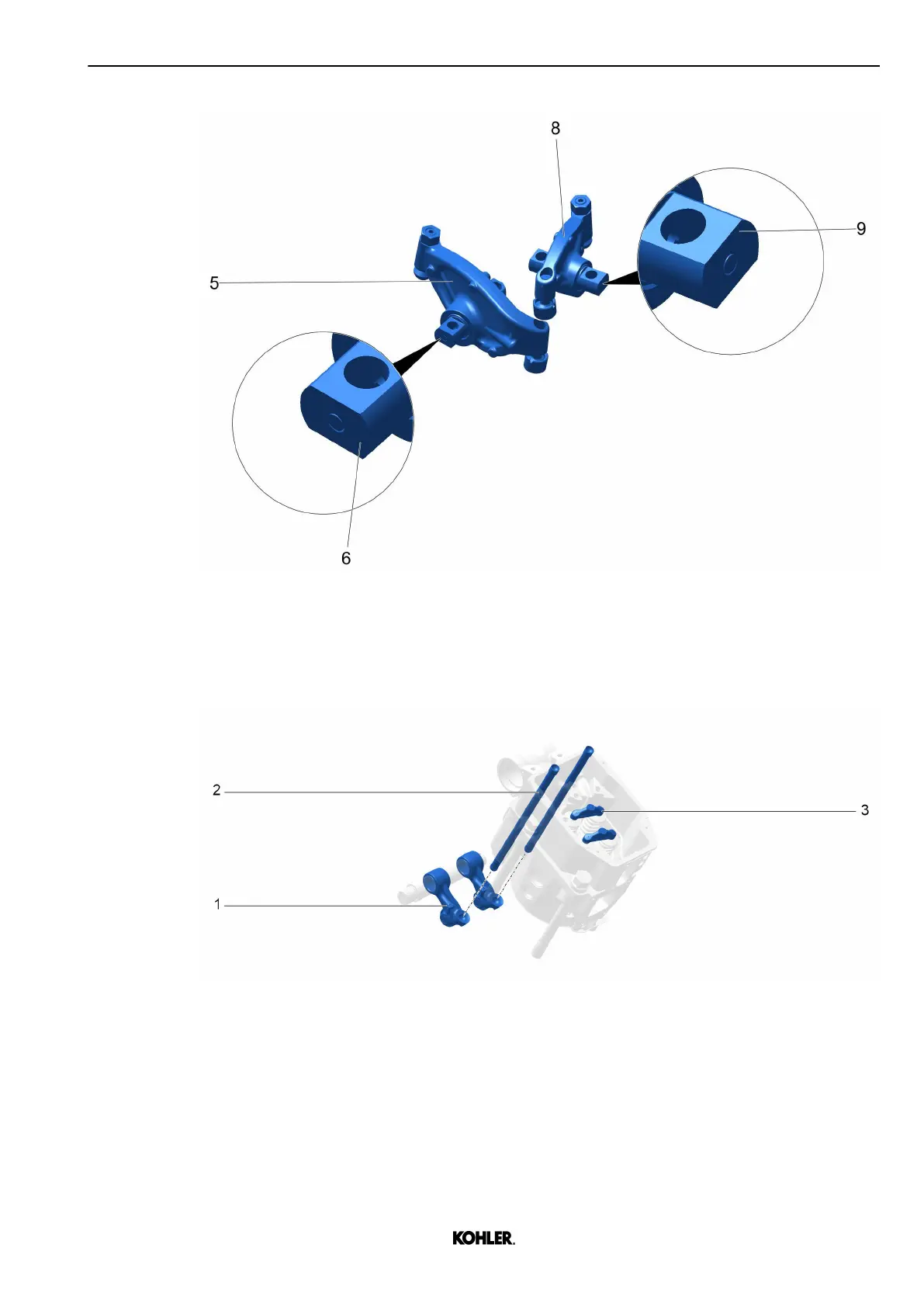

Fig. 67: Pre-mounting rockers arms
u Insert inlet shaft 6 into inlet rocker arm 5, making sure the plug on the shaft faces outwards.
u Insert exhaust shaft 9 into exhaust rocker arm 8, making sure the plug on the shaft faces
outwards.
Fig. 68: Installing pushrods and valve bridges
u Insert pushrods 2 into cylinder head and fit it with swing followers 1.
u Insert valve bridges 3 into inlet and exhaust valves.
KD62V12 33525088601_8_1 EN_US
2022-09
