Repair
Rocker arms

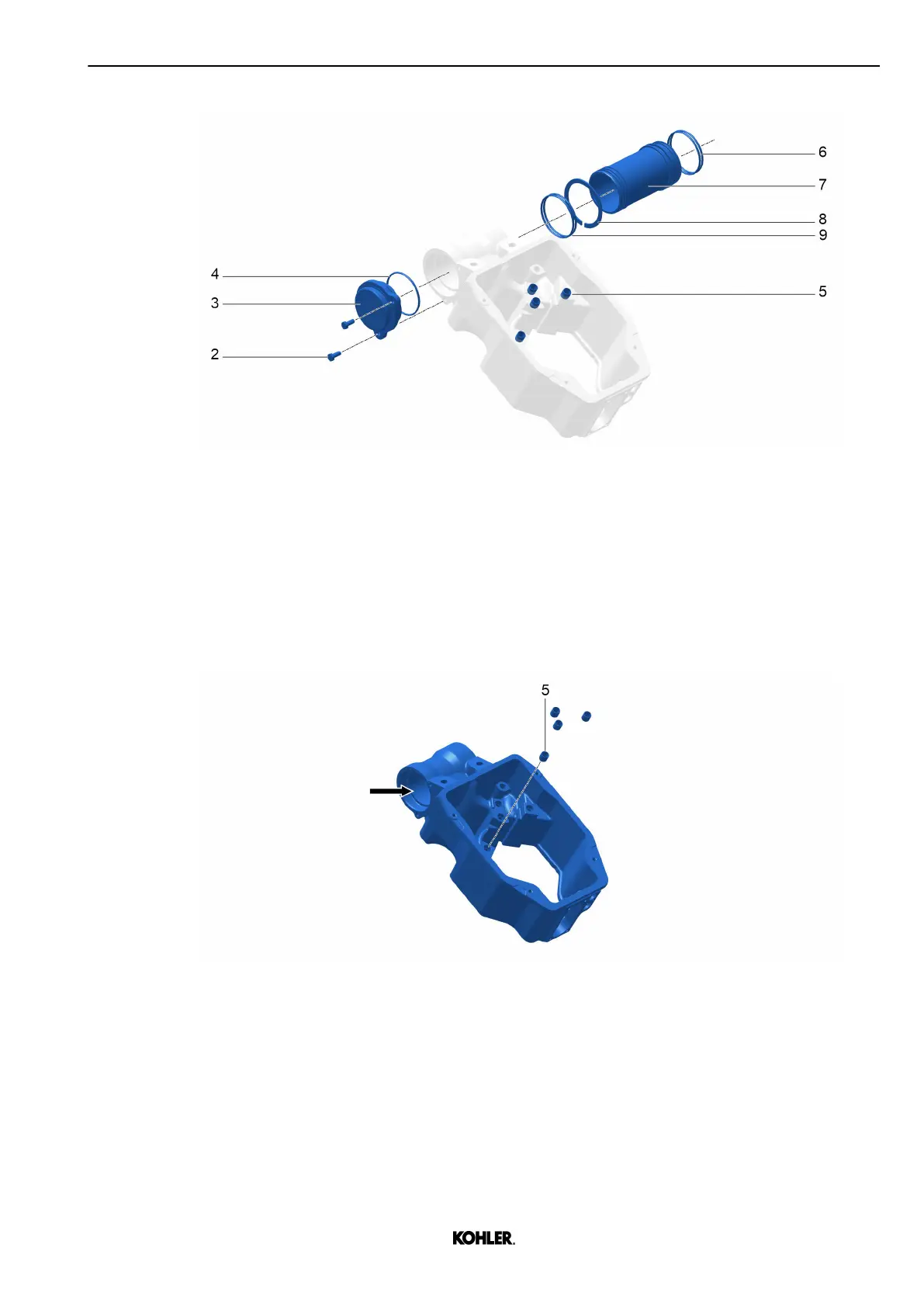

Fig. 76: Removing coolant pipe HT and closing cover
u
Remove screws 2 and locking ring 8.
u Separate rocker arm housing from coolant pipe HT 7 and closing cover 3.
u Remove seals 4, 6 from closing cover and coolant pipe HT.
u Remove fitting sleeves 5.
Installation
Fig. 77: Preparing rocker arm housing
u Grease coolant pipe.
u Insert fitting sleeves 5.
KD62V12 33525088601_8_1 EN_US
2022-09
