Repair
Rocker arms

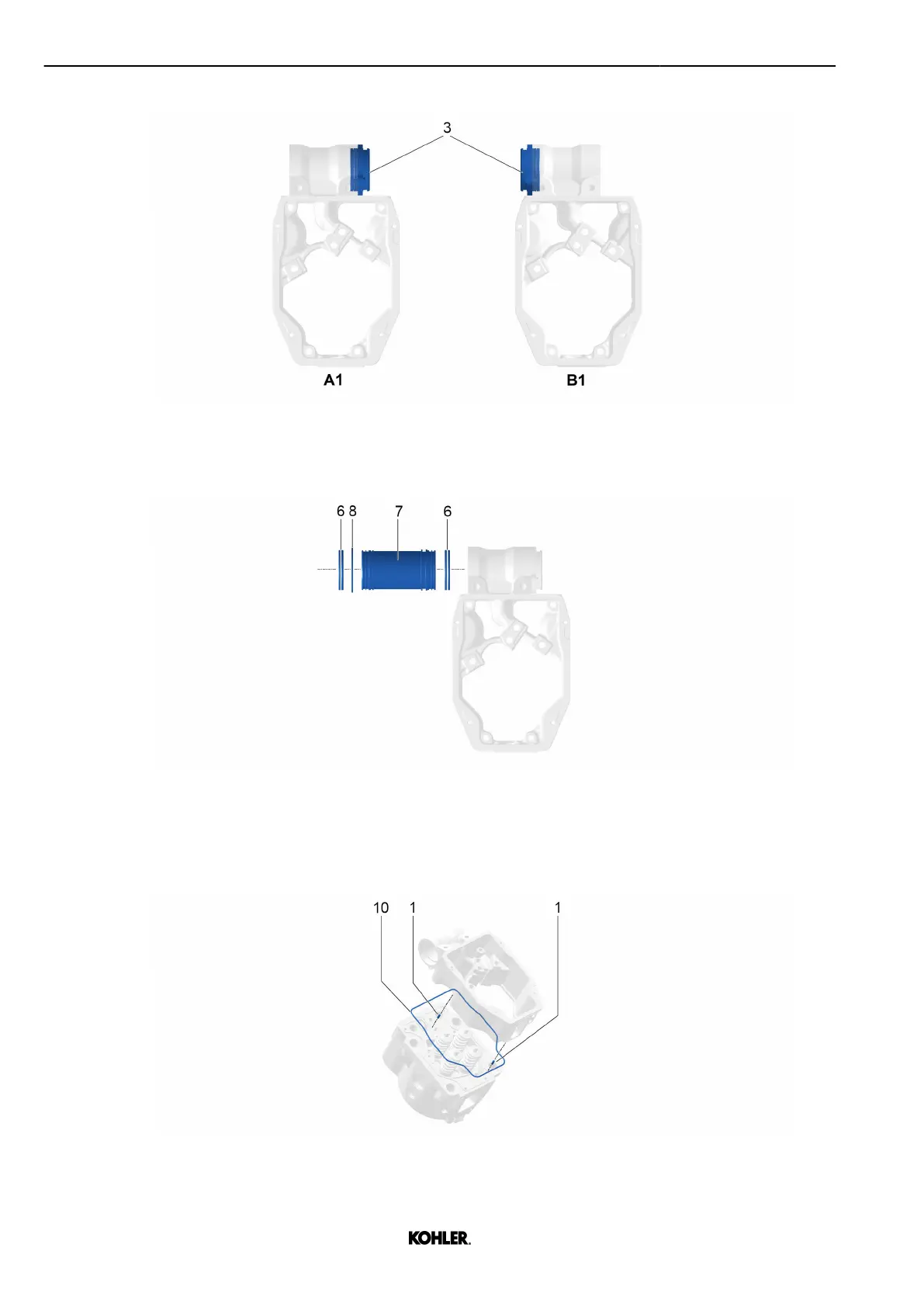

Fig. 78: Mounting closing cover
u Mount closing cover 3 on rocker arm housing with screws 2 and seal 4.
Fig. 79: Mounting coolant pipe HT
u Put seals 6 and locking ring 8 on coolant pipe HT 7.
u Insert coolant pipe HT 7 in rocker arm housing.
Fig. 80: Inserting pins and seal
86
