Repair
Cylinder head
u Mount lifting device on cylinder head.
u Lift and push cylinder head 1 up and down to dismantle it.
u Remove cylinder head 1.
u Remove multichannel gasket 3 and o-ring set 2.
u Remove cylinder head gasket 4.
u Remove flame ring 5.
Installation

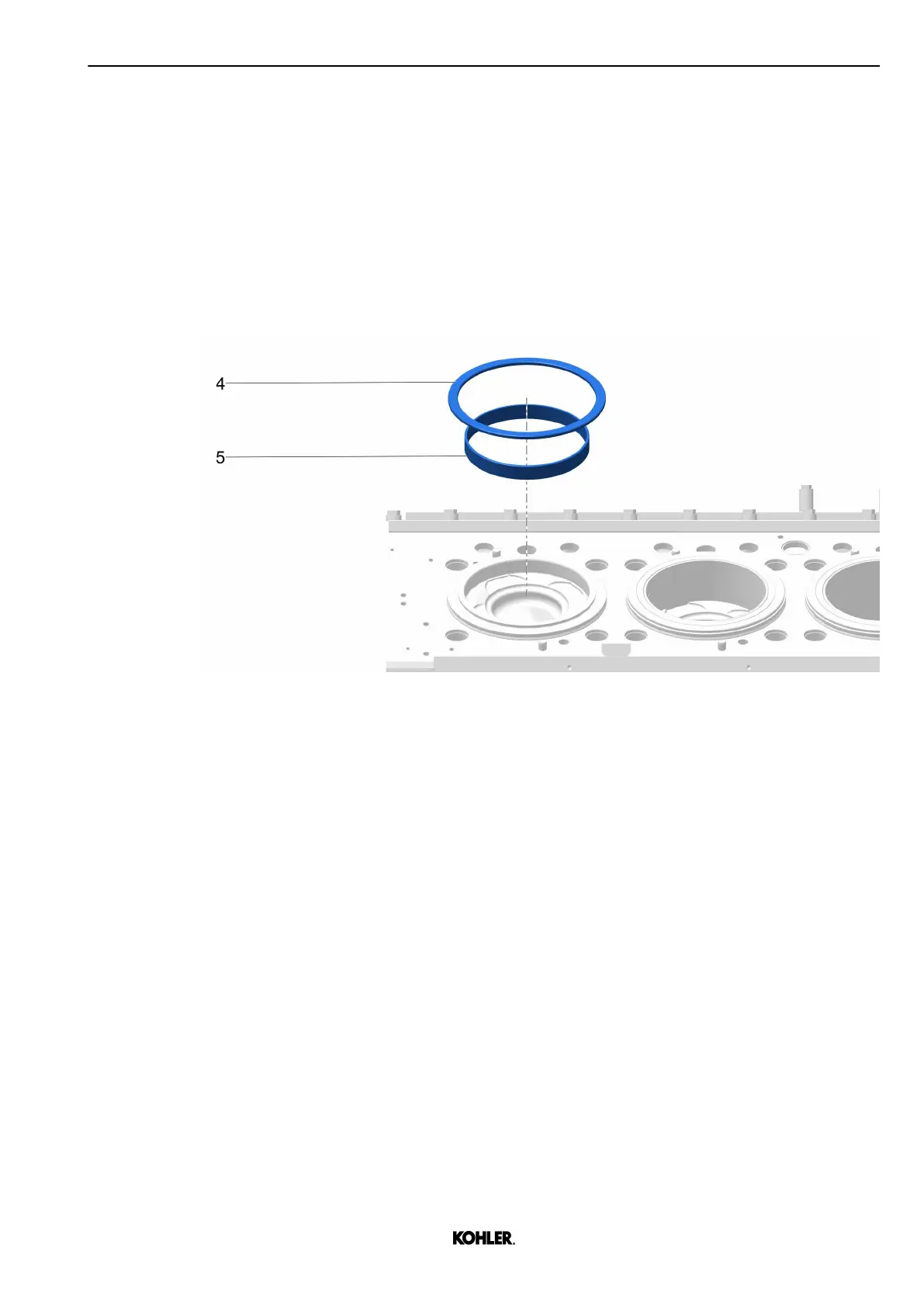

Fig. 85: Installing cylinder head gasket and flame ring
u Mount flame ring 5 in liner.
u Mount cylinder head gasket 4 on liner.
