Repair
Cylinder head

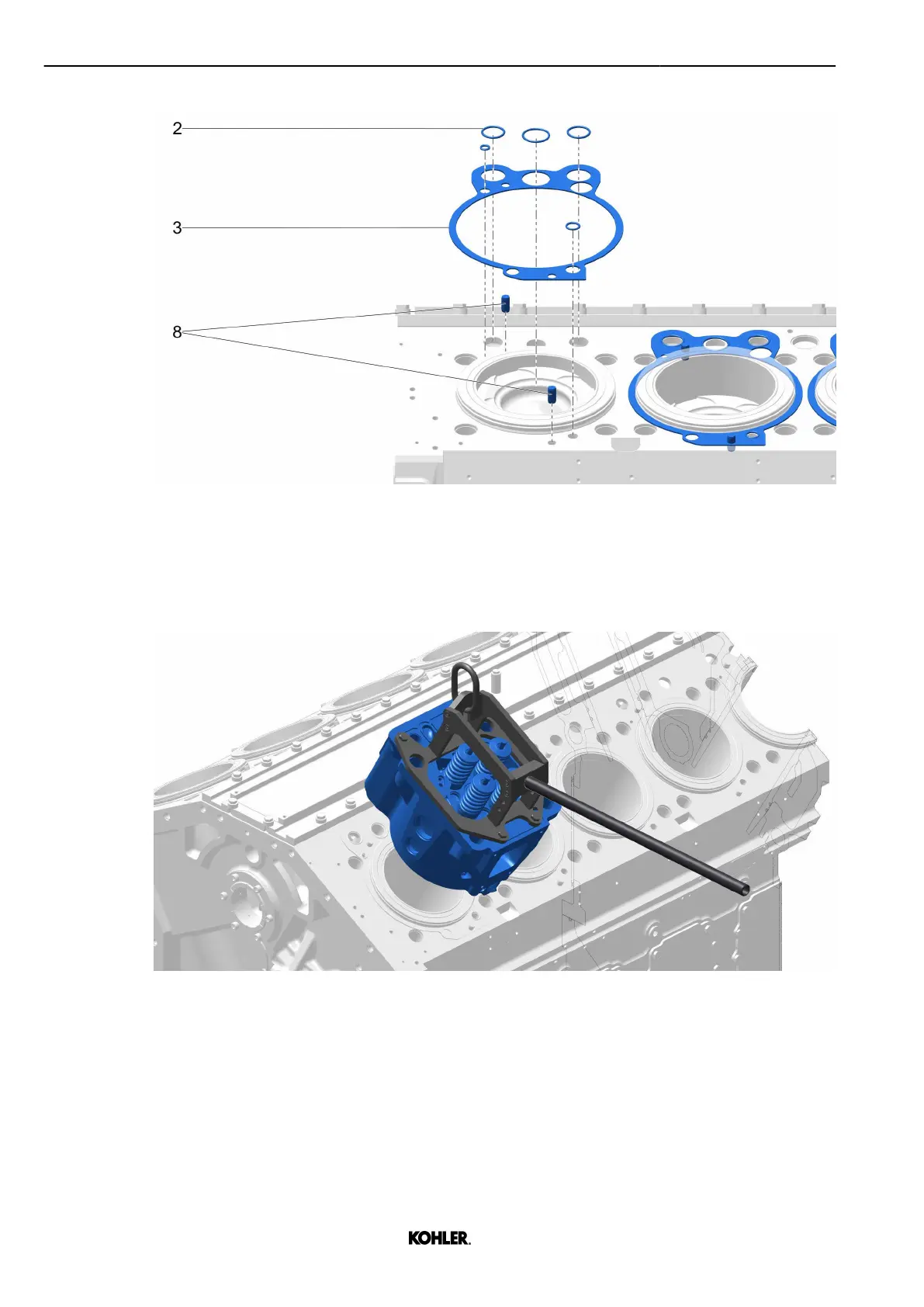

Fig. 86: Installing multichannel gasket and o-rings
u Mount locating pins 8.
u Grease o-rings 2.
u Mount multichannel gasket 3 with o-rings 2.
Fig. 87: Installing cylinder head
u Mount lifting device on cylinder head.
u Mount cylinder head on engine block.
92
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
