Charge air system
u Install clamps 7, 16 with screws 8, 14, distance sleeve 15, and locking plates 9.

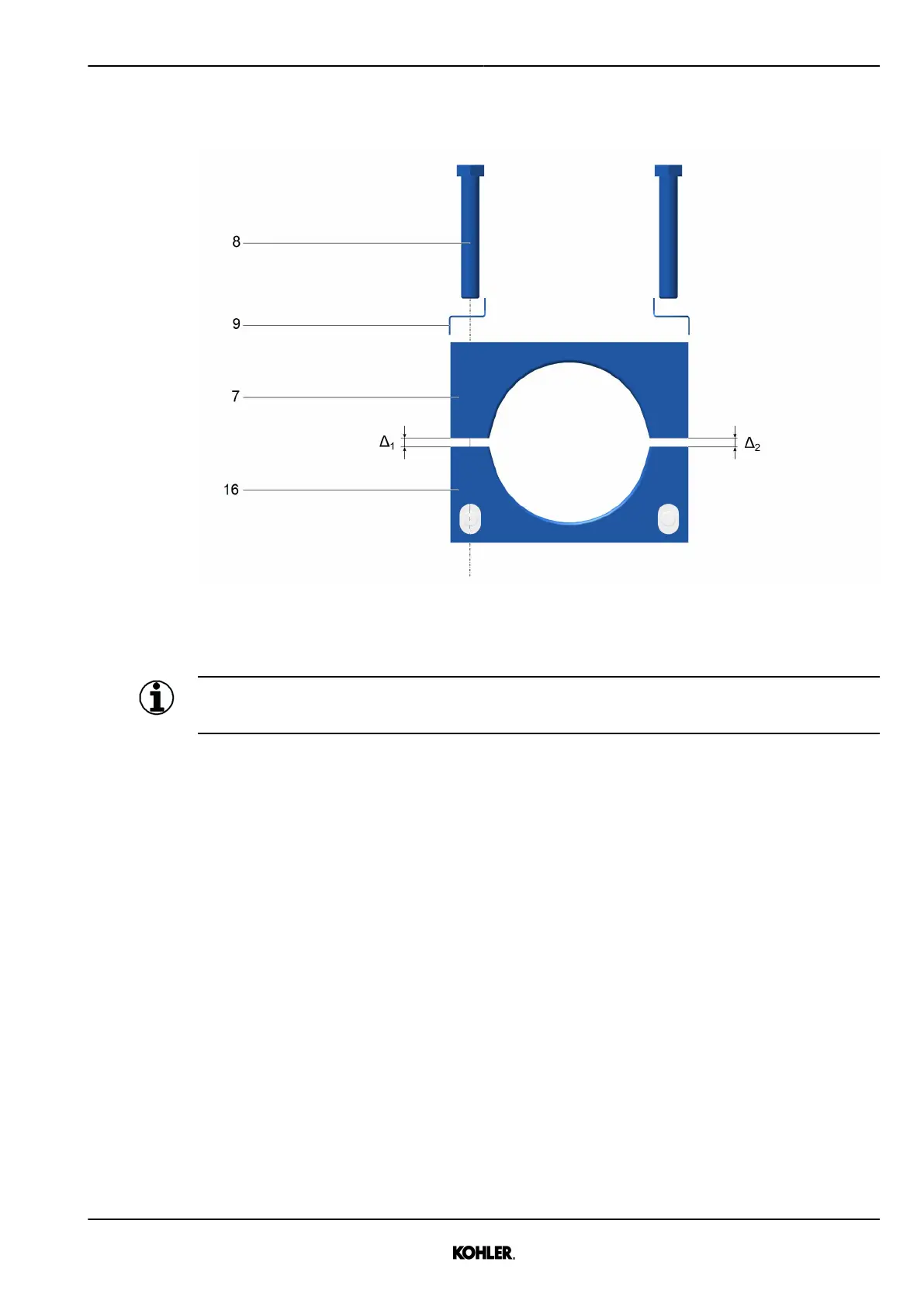

Fig. 177: Installing clamps
u Pretighten both screws 8 simultaneously to ensure Δ
1
= Δ
2
after tightening.
Information
Bend locking plates 9 after assembly.
u Tighten screws 8 to torque.
KD83V16 33525088901_2_1 EN_US
2021-07
