Kohler KD83V16 Service And Repair Manual

Repair Service and Repair Manual
Charge air system

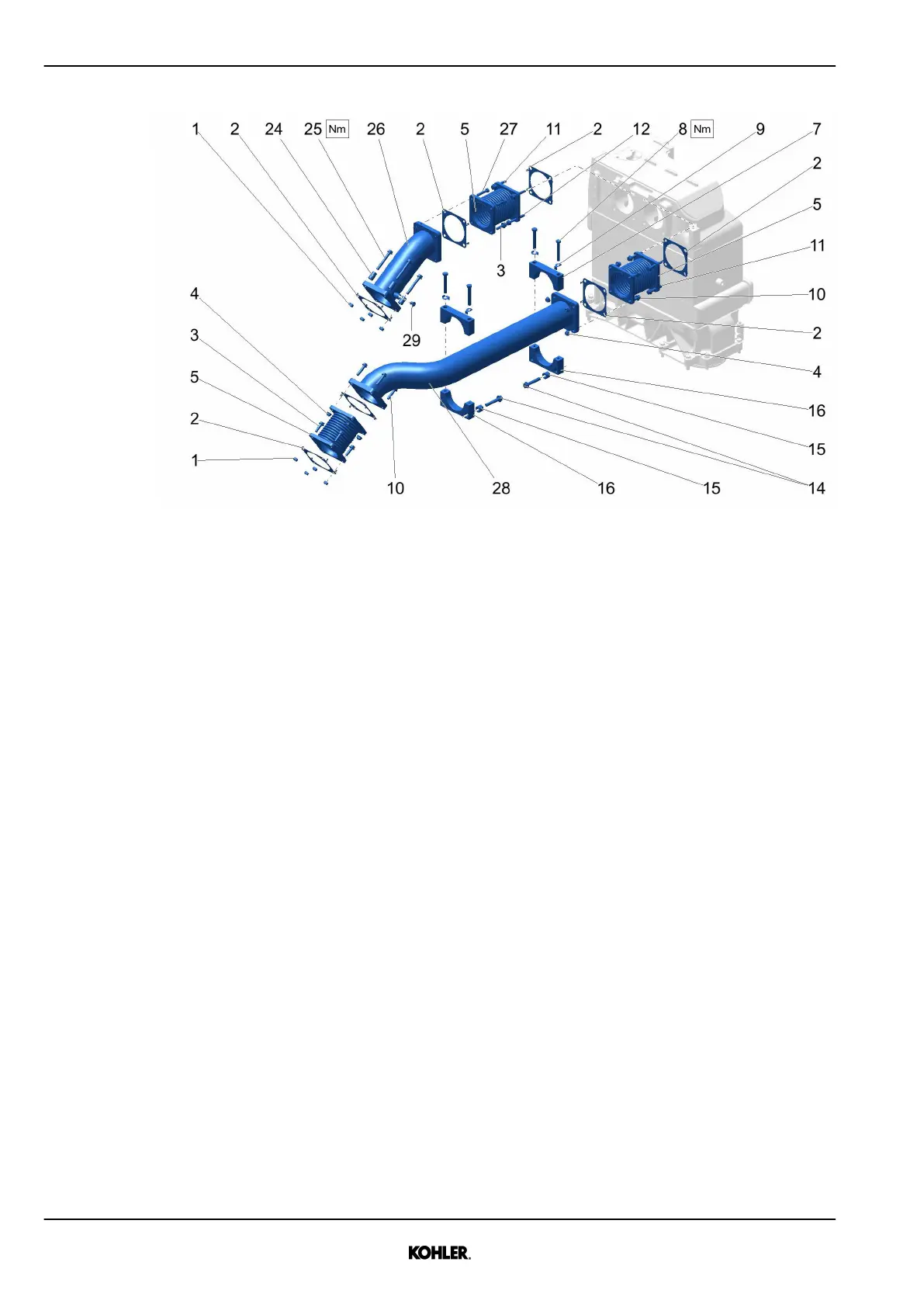

Fig. 178: Installing compensators and charge air lines
u Assemble pipe 26 with compensator 5, and seal 2 using screws 3, 27.
u Install assembly to charge air cooler with screws 11, and seal 2.
u Install assembly to turbocharger with screws 25, distance sleeves 24, seal 2, and nuts 1.
u Install screw plug 29.
u Assemble pipe 28 with compensators 5 using screws 10, seals 2, and nuts 4.
u Install assembly to charge air cooler with screws 11, and seal 2.
u Install assembly to turbocharger with screws 3, seal 2, and nuts 1.
u Install clamps 7, 16 with screws 8, 14, distance sleeves 15, and locking plates 9.
156
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
