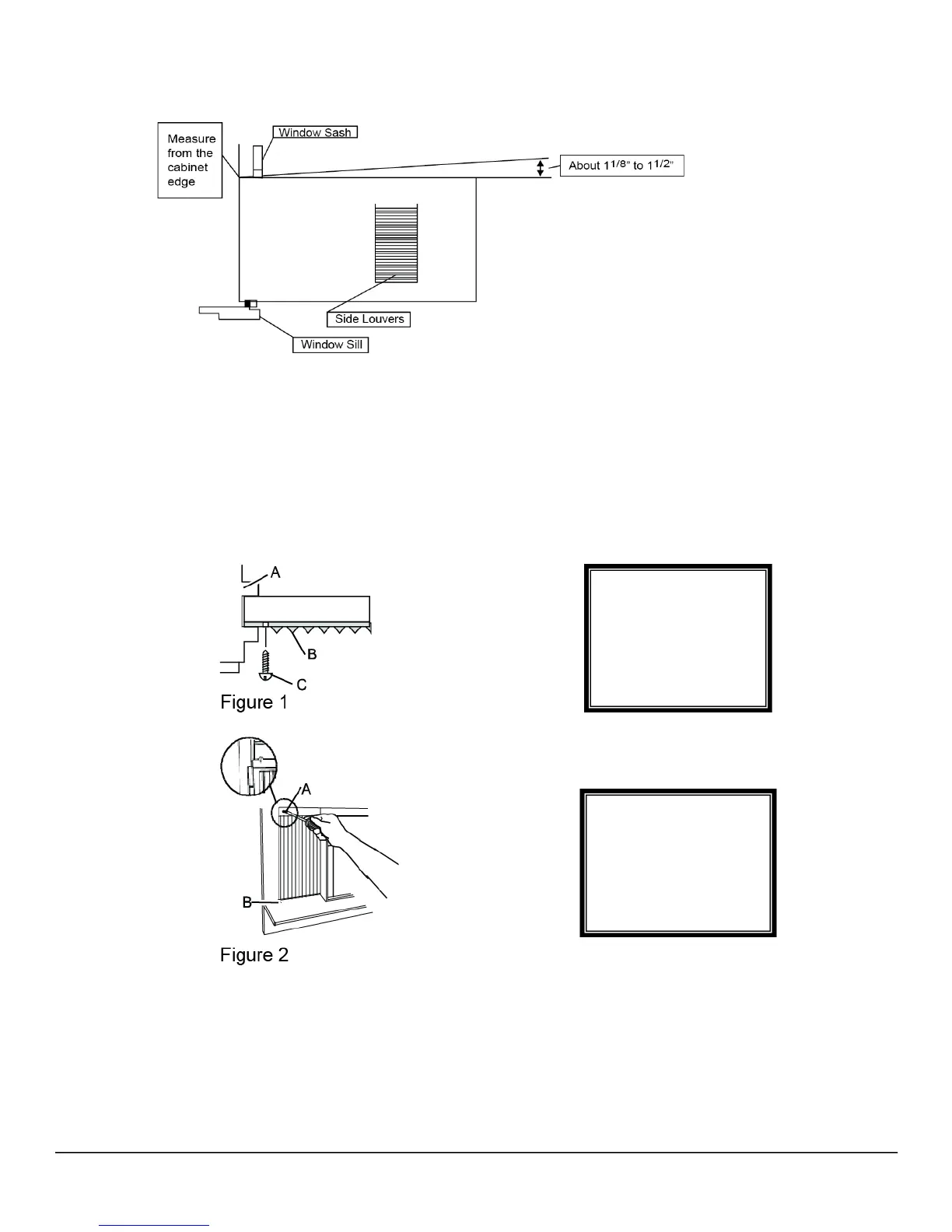

3. Check that the air conditioner cabinet is tilted back about 1 ⅛” to 1 ½“, which should be about
3-4 degrees downward to the outside. After proper installation, condensation should not drain
from the overflow drain hole during normal use, correct slope or otherwise.
Attach Side Curtains to Window Frame
1. Extend the side curtains out against the window frame.
2. Drill holes and drive locking screws:
- Wooden Windows - Use a 3/32” drill bit to drill four starter holes through the holes in the
side curtains into the window. Screw in four #10 x ¾” screws through the holes in the side
curtains into the window sill.
- Vinyl Windows - Use a 1/8” drill bit to drill two holes through the holes in the side curtains
into the window frame. Screw in the #10 x ¾” Flat Screw through the holes in the side
curtains into the window sash. Refer to figure 1 above.
4. Trim the weather seal with a proper length peel off protective backing and plug any gaps if
needed as shown in Figure 2.
