4. To attach the side curtains to the air conditioner, insert the right-hand curtain connector tab
into the curtain housing channels on the air conditioner.

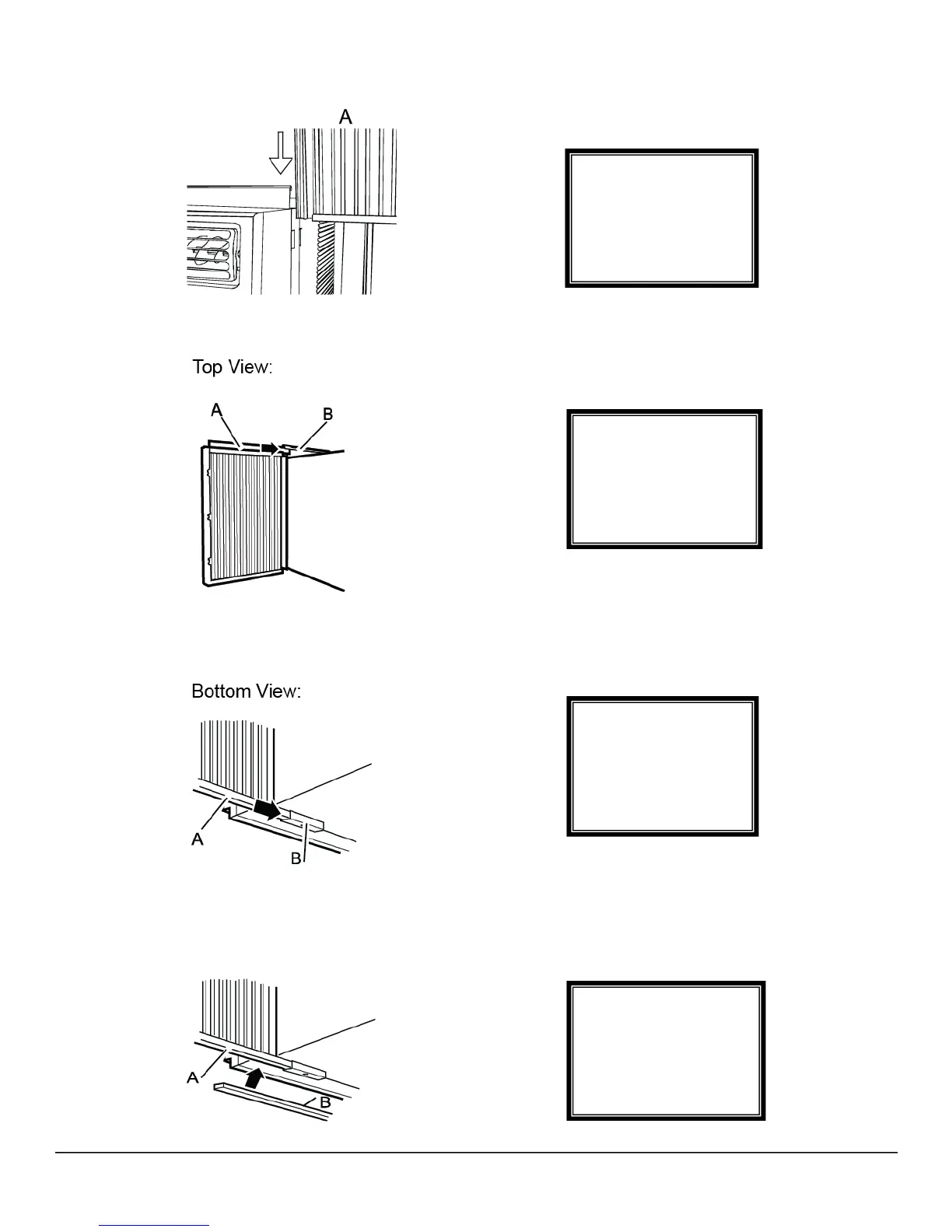

5. Insert the top of the right-hand curtain housing into the top curtain channel as shown below:
6. Then insert the bottom of the side curtain housing into the bottom channel on the air
conditioner as shown below:
Attaching Foam Adhesive
1. Attach the foam adhesive seal along the bottom of the curtain channel to maximize
performance and efficiency.
A. Curtain Housing
B. Curtain top
channel on air
conditioner
A. Side Curtain
A. Curtain Housing
B. Curtain bottom
channel on air
conditioner
A. Curtain Housing
B. Foam Adhesive
Seal
