Completing Installation

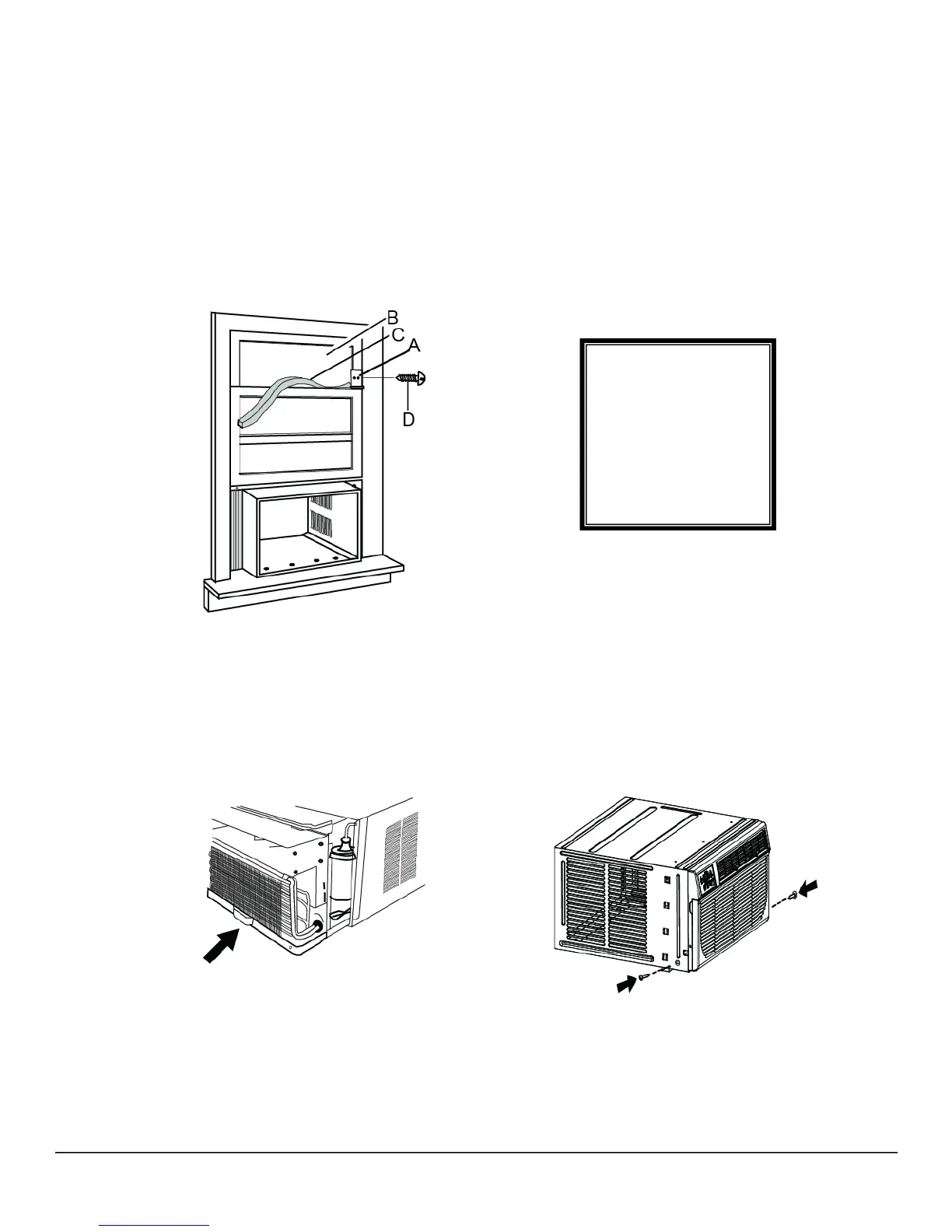

1. Insert the window sash seal (C) behind the top of the lower window sash and against the glass
of the upper window (B).
2. Place the window-lock bracket (A) on top of lower window and against upper window sash on
right side of the window.
3. Use a 3/32” drill bit to drill starter holes through the holes in the bracket (A) into the window
sash.
4. Attach the window lock-bracket (A) to the window sash with two #10 x ¾” flat screws (D) to
secure the window in place.
5. Insert the Air Conditioner into the cabinet.
6. Insert the front tabs of the front panel into the top of the cabinet and the window front so that
they are held in place.
7. Attach the bottom front of the panel with the front panel screws.
8. Plug into a grounded 3-prong outlet.
9. Press “Reset” on the power cord supply.
10. Press the on/off button to power on the unit.
Read the Control Panel Operations section for proper use.
A. Window Lock
Bracket
B. Upper Window
Glass
C. Window Sash
Seal
D. #10 x ¾” flat
screws
