Kollmorgen Seidel SERVOSTAR 600 Series Assembly, Installation And Commissioning Instructions

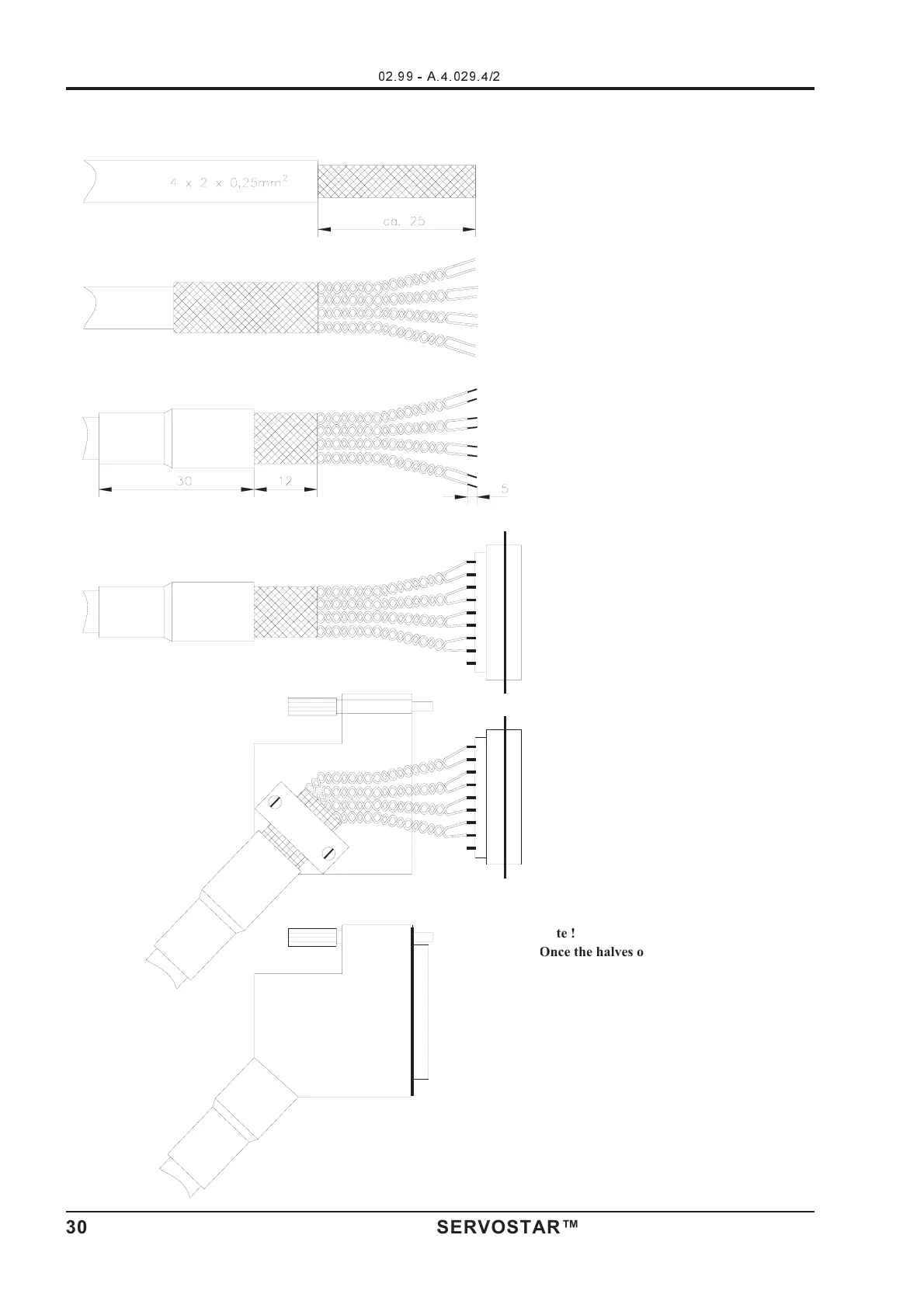

II.3.4.3 Wiring up a SubD-connector with shielding
Example : resolver connector X2
- A.4.029.4/2
30 SERVOSTAR™ 600 Installation-manual
Installation 02.99 - A.4.029.4/2 Kollmorgen
Note !
Once the halves of the housing have been
pressed together, they cannot be opened
again without damage !
Place the SubD-connector in the groove of the
half-housing (pin 1 at bottom) and press the two
halves together.
Fix the cable to the connector housing by the
strain relief. The strain relief must sit well, with
a good contact on the bared shielding of the
cable.
Place the knurled screws in position.
Solder the individual cores to the solder buckets
of the SubD connector (check the core colours) -
according to the connection diagram in Chapter
II.3.1 Check the pin assignment afterwards.
Leaving the first 12mm of the shielding braid
free, insulate the rear portion with shrink-wrap
tubing. Strip off the individual cores over a
length of about 5mm, without damaging the
stranded copper.
Push back the exposed shielding braid over the
outer covering.
Strip off the outer covering over a length of
about 25mm, taking care not to damage the
shielding braid.
