III.4 Feedback

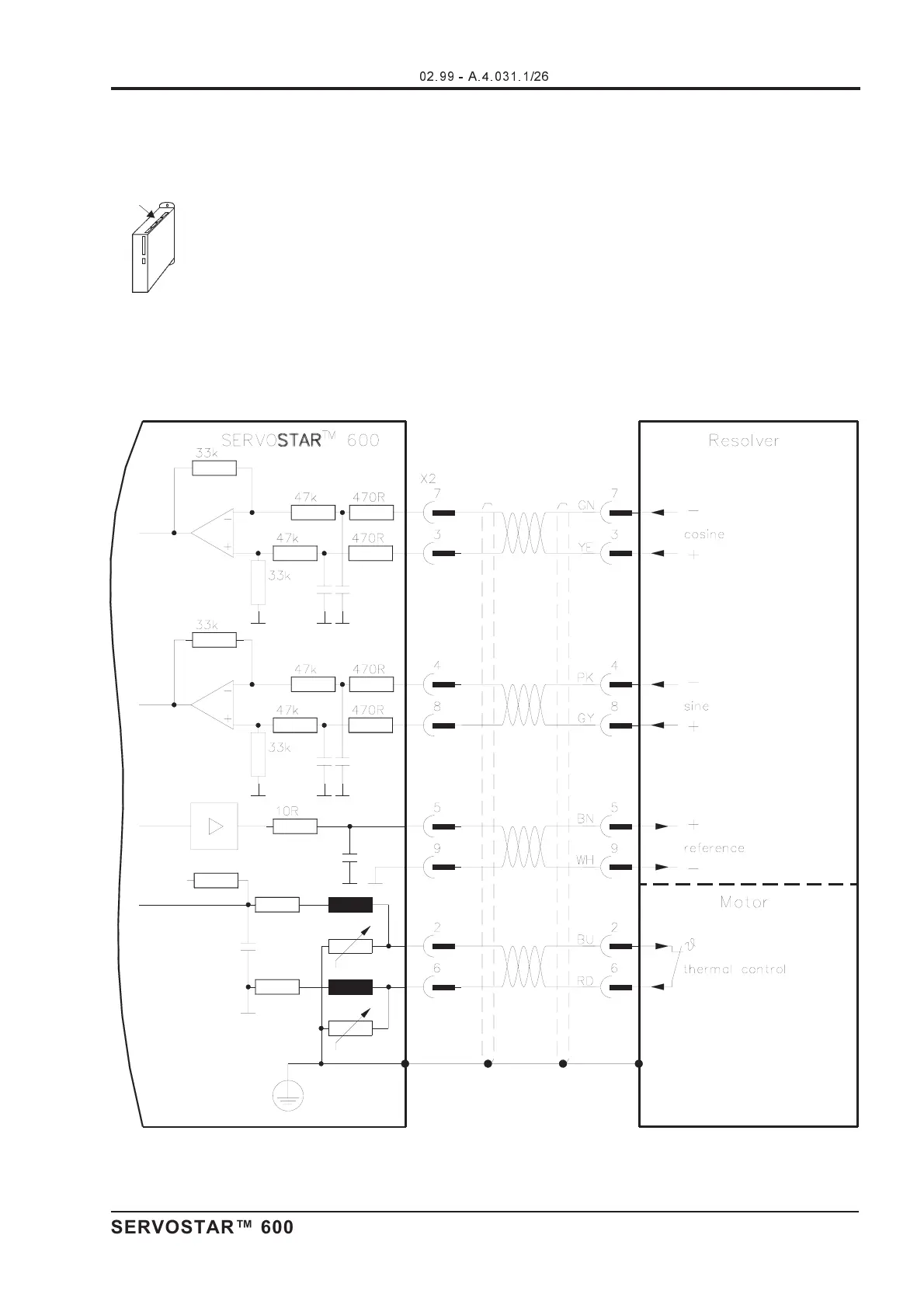

III.4.1 Resolver connection (X2)
The motors of the 6SM series have 2-pole hollow-shaft resolvers built in as a standard.
It is possible to connect 2, 4 or 6-pole resolvers to the SERVOSTAR™ 600.
If lead lengths of more than 100m are planned, please contact our application department.
The thermostat contact in the motor is connected via the resolver cable to the
SERVOSTAR™ 600 and evaluated there.
- A.4.031.1/26
SERVOSTAR™ 600 Installation-manual 39
Kollmorgen 02.99 - A.4.031.1/26 Interfaces
