III Interfaces
All important interfaces are shown in this Chapter. The precise location of the connectors and
terminals can be seen in Chapter II.3.3.

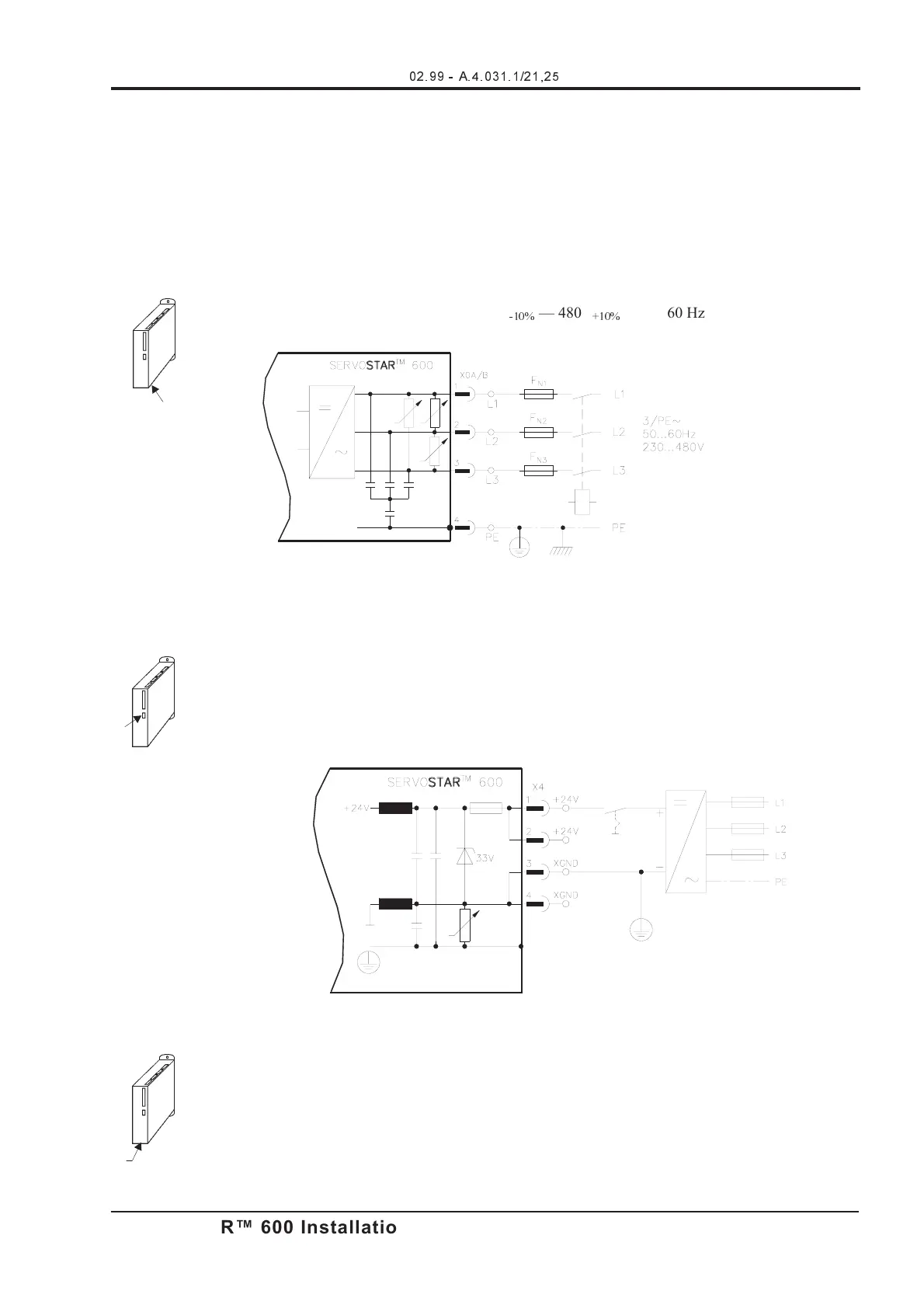

III.1 Power supply
III.1.1 Mains supply connection (X0)
— Directly to earthed 3~ supply, 230V
-10%
— 480V
+10%
, 50 — 60 Hz, integrated filter
— Fusing (e.g. fusible cut-outs) provided by the user ð I.7.1
III.1.2 24V auxiliary supply (X4)
— Electrically isolated, external 24V DC supply, e.g. with insulating transformer
— Required current rating ð I.7
— Integrated EMC filter for the 24V auxiliary supply
III.1.3 DC-link (X7)
Can be connected in parallel, thanks to patented circuit to distribute the regen power among all the
amplifiers connected to the same DC-link circuit. (Connection example ð II.3.2).
- A.4.031.1/21,25
SERVOSTAR™ 600 Installation-manual 37
Kollmorgen
02.99 - A.4.031.1/21,25
Interfaces
