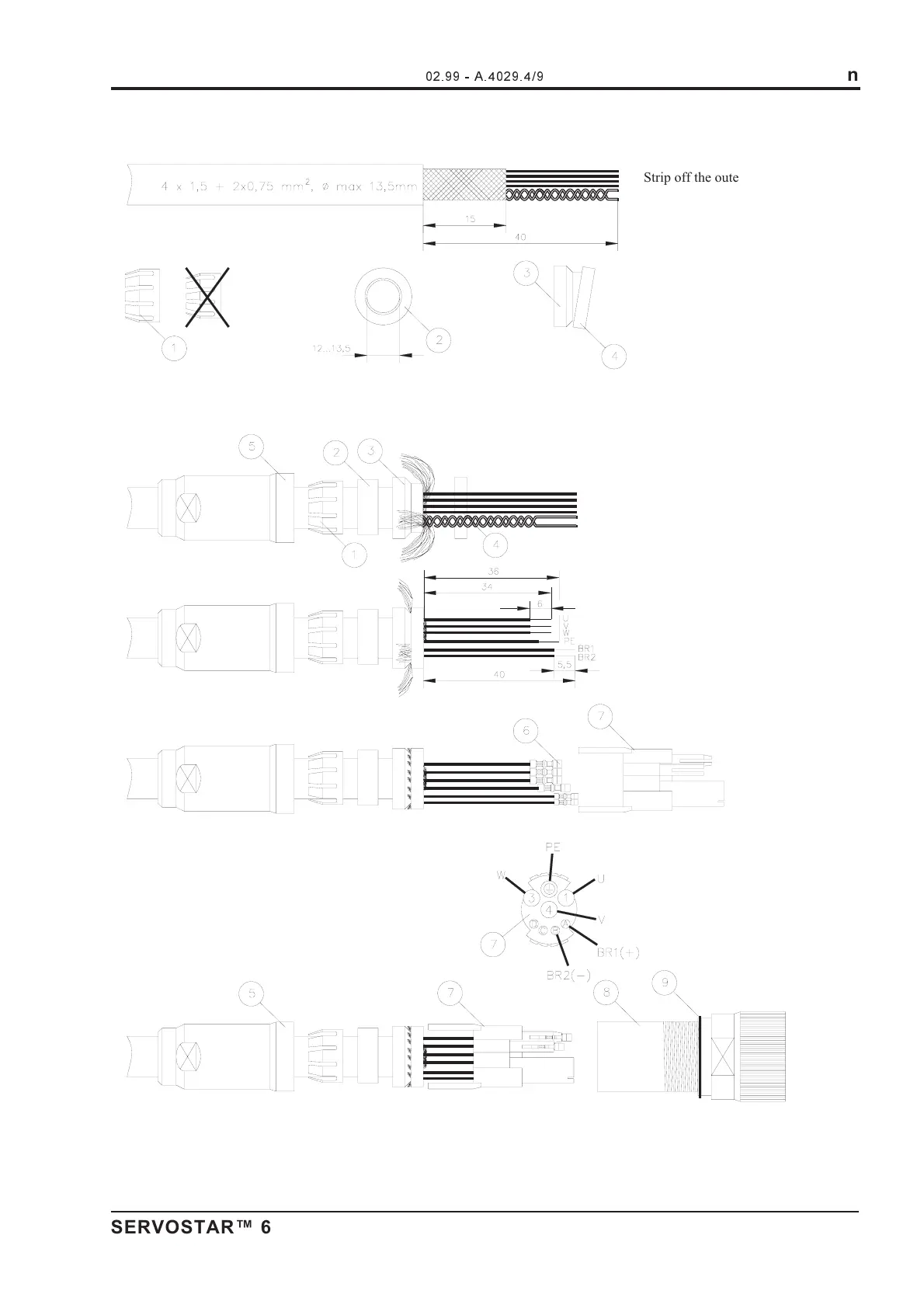

II.3.4.6 Wiring up the motor power connector (motor end)
- A.4029.4/9
SERVOSTAR™ 600 Installation-manual 33
Kollmorgen 02.99 - A.4029.4/9 Installation
Strip off the outer covering over a
length of 40mm. Do not damage the
shielding braid.
Shorten the shielding braids to
15mm.
Use the large strain relief  .
Trim the sealing ring  to
suit the cable diameter.
Use a screwdriver to separate the
shielding sleeve
 and the clamping
ring
 .
Push items ,,, onto the
cable. The shielding sleeve
 must
be flush with the end of the outer
covering.
Push the shielding braids back over
the shielding sleeve
.
Press the clamping ring  onto the
shielding sleeve
. Cut off any
projecting shielding strands. Shorten
and strip off the cores.
Fit the crimp contacts  , using the
proper crimp tool.
Push the crimp contacts into the
plastic insert  until they snap into
place.
Push parts  to  together and insert them into the connector  . Hold connector  with an open-jaw spanner
(24 a/f) and screw up part
 tightly, also holding it in an open-jaw spanner (24 a/f) . Tighten it up until the O-ring
 seals the connection.
