Instruction manual
20220513E 11
1.5 RF300 Rudder Feedback Unit

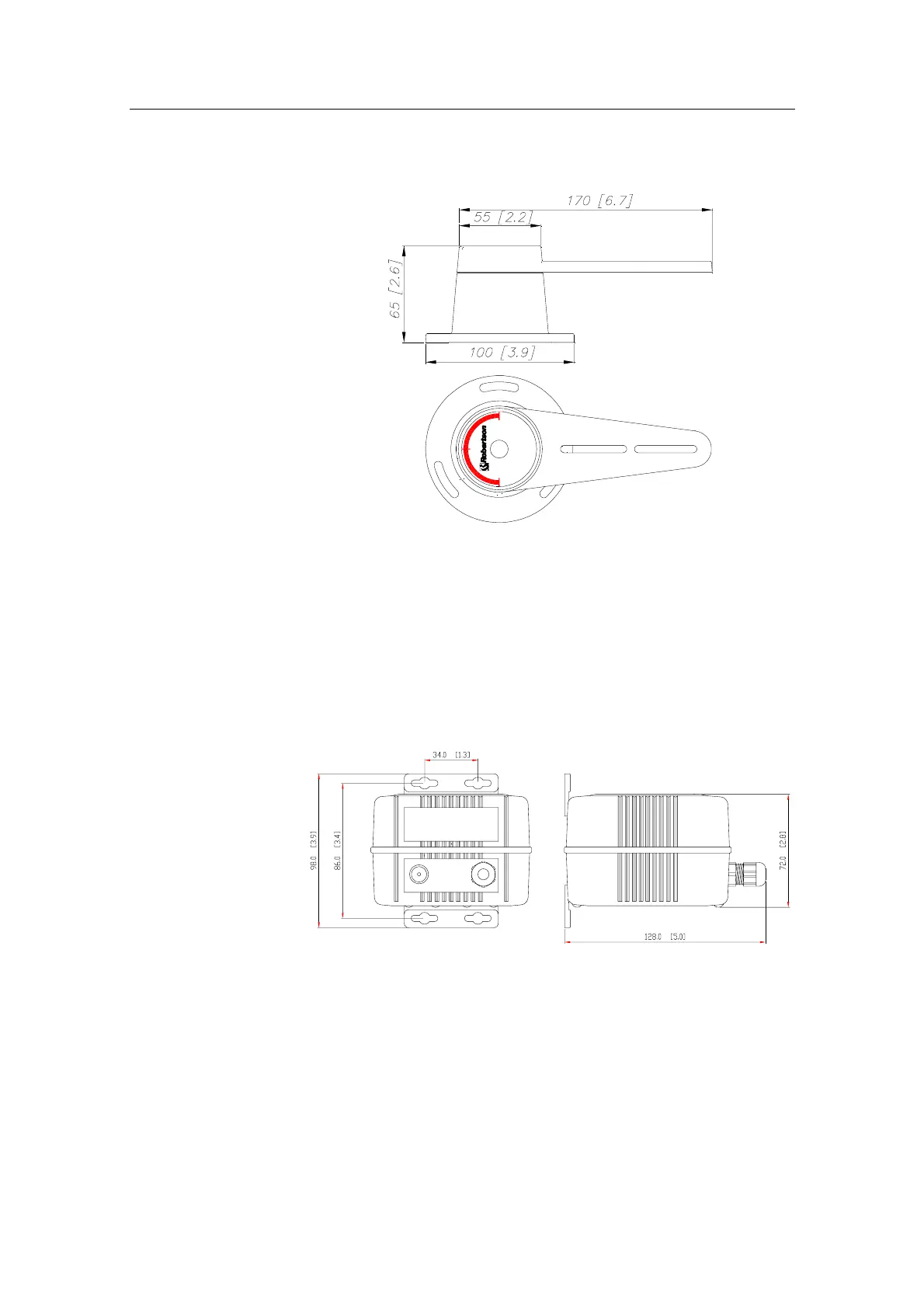

Figure 4 RF300 Dimensions
Rudder feedback unit with transmission link and 10 m (30
feet) of cable. Transforms the angular travel of the rudder to
a digital signal read by the autopilot steering computer. (See
also optional linear feedback on page 13).
1.6 RFC35 Fluxgate compass
Figure 5 RFC35 Dimensions
A compact heading sensor from Robertson with 15 m (45
feet) of cable. The direction of the earth's magnetic field is
sensed by a coil with a floating ring core and transformed to
a digital signal read by the autopilot steering computer.
