Instruction manual
20220513E 51

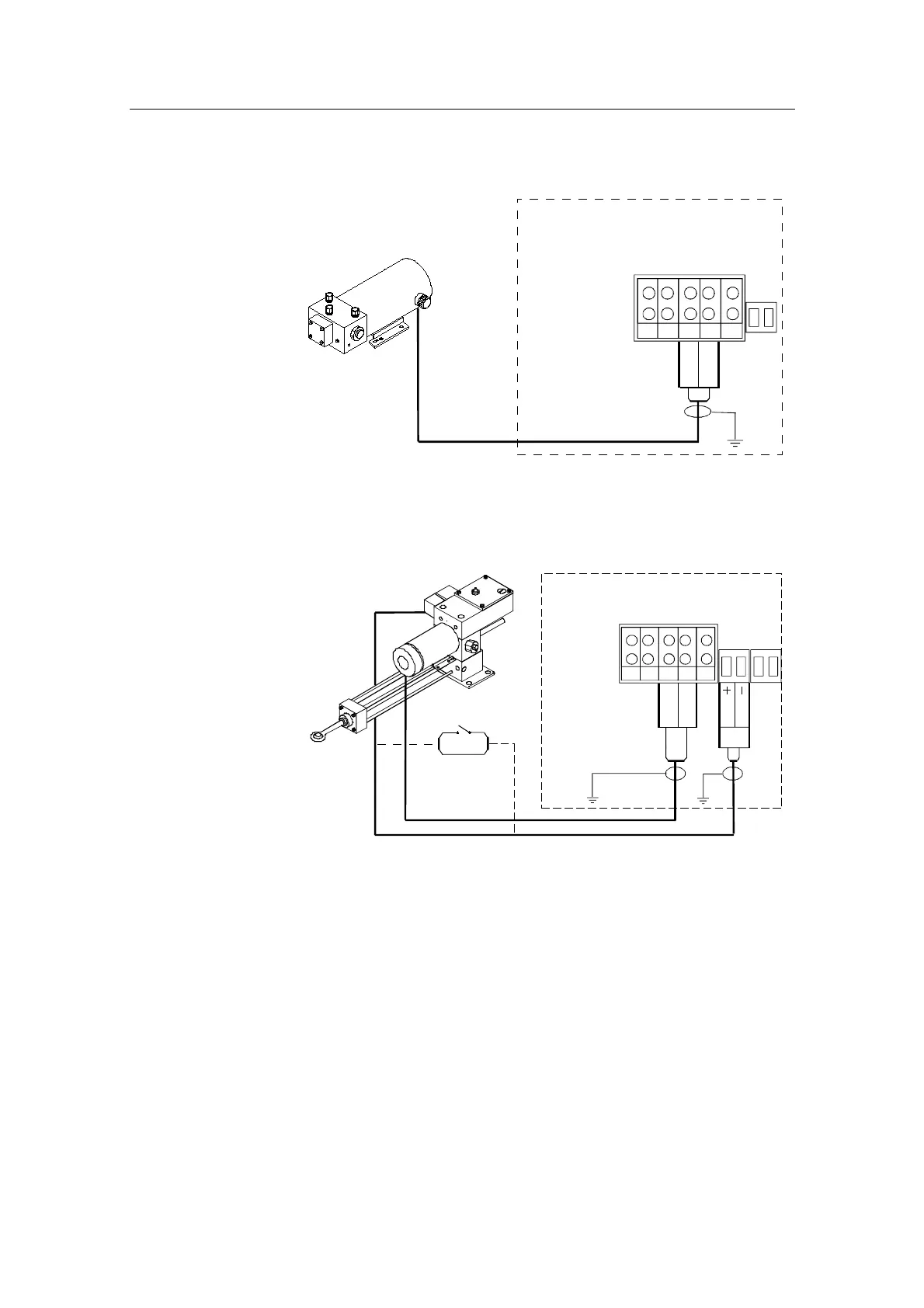

Connecting a reversible pump
Robertson
reversible
pump
JUNCTION UNIT
POWER PCB
TB1
TB2 TB3 TB4
TB5
TB6
Sol. -Motor
Sol. -Motor
Figure 20 Reversible pump connection
Connecting a hydraulic linear drive
JUNCTION UNIT
POWER PCB
TB1
TB2 TB3 TB4
TB5
TB6
Bypass
Clutch
Sol. -Motor
Sol. -Motor
TB7
HYDRAULIC
LINEAR DRIVE
Single pole
clutch/bypass
switch
Figure 21 Hydraulic linear drive connection
Separate clutch/bypass switch
On sailboats it may be practical to install a single (or double)
pole switch at the helm to be able to disengage the drive
unit. Run the clutch/bypass cable via the switch to the
junction unit as shown. Refer also to page 27.
