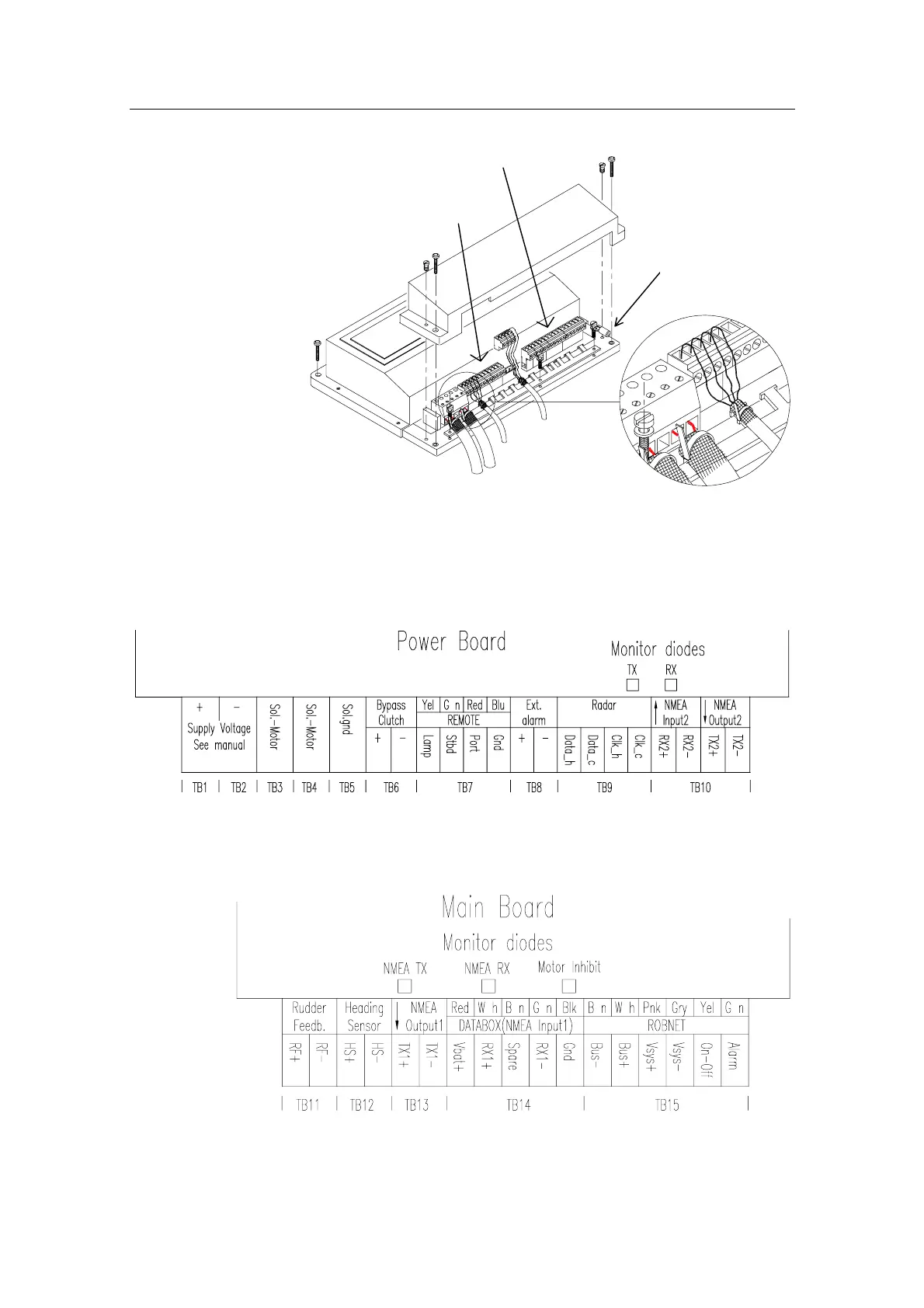

Figure 19 Junction unit grounding
Pull out each terminal before connecting the wires. Remove
all strands before putting on the terminal cover.
Power Board terminals
Main Board terminals
Ground terminal
TB9 and TB10 are not on the
J
3000X Power Board
Main Board terminals
Power Board terminals
