Konica Minolta magicolor 8650DN Installation Manual

E-4

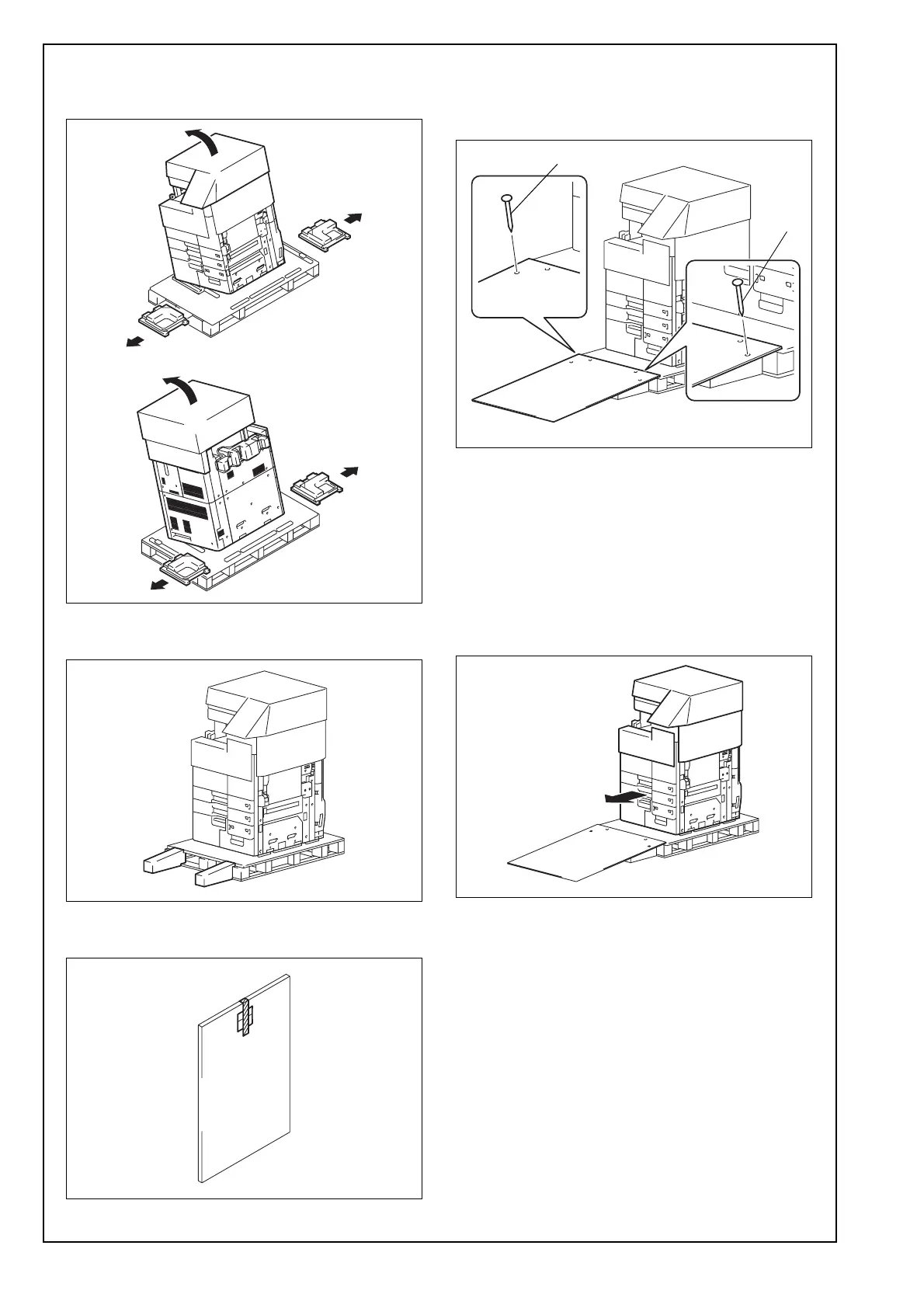

3. Hold onto the handle of the machine and tilt the
machine to the right and left. Under this condition,
remove the fixing materials (lower).
4. Separate the cushion into two and install them to
the pallet (at two places).
5. Take out the slope and protective tape and
remove nails from the plastic bag.
6. Position the slope as illustrated and drive nails in
to fix the slope in position.
Caution:
Insert the nails in the outer holes.
7. Holding onto the front cover and the back panel
of the machine, slide the machine down along the
slope.
Caution:
Machine mass: 221 kg (487-3/16 lb)
• Perform this step on a level, stable site and
assign an adequate number of persons.
• When sliding the machine down, do not hold
onto the scanner portion.
• Do not insert your leg under the slope.
A2X0IXC005DB
A2X0IXE069DA
A2X0IXE054DA
A0P0IXC067DA
A2X0IXE055DA
Nail
Nail
A2X0IXE056DA
