6

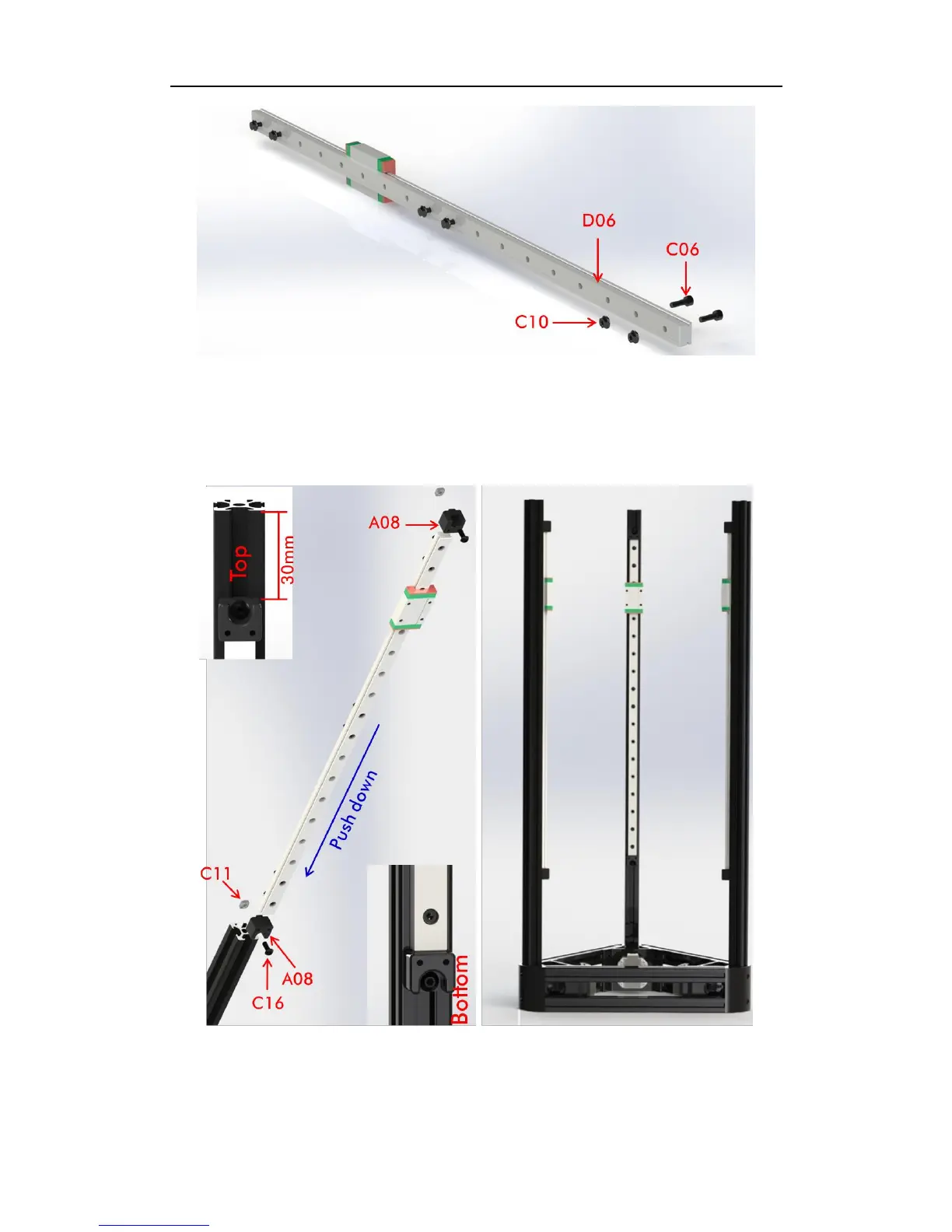

Fig. 12
Step 2. Prepare 2 pieces of stop blocks (A08) with C16 and C11. Then push down one of
the stop blocks, the linear rail, and the other stop block sequentially along with the long
Al-extrusion as shown in Fig. 13. The suggested distance between the stop block and the top
of the long Al-extrusion is 30mm. Do the same to the rest of the 2 long Al-extrusions.
Fig. 13
Step 3. Use 4 screws (C06) to fix belt tensioner onto the linear rail as shown on the left of Fig.
14. Then do the same to the rest as shown on the right side of Fig. 14.
