Shenzhen Anycubic Technology Co., Ltd.
7
Fig. 14
(2) Pulley Version

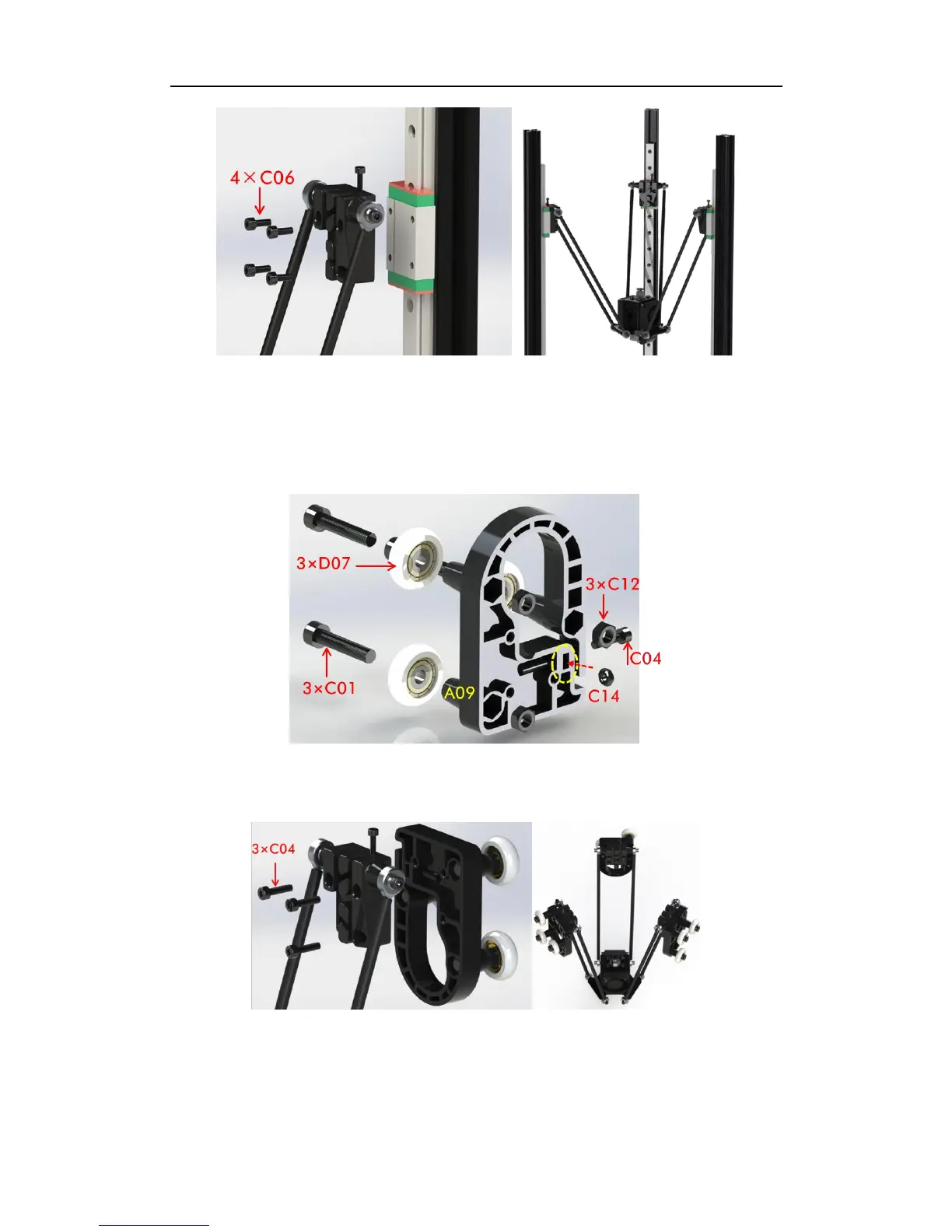

Step 1. As shown in Fig. 15, fix 3 pulley wheels (D07) to the carriage (A09) using 3 pairs of
C01 and C12. Insert C14 into the dash-circle area and fix a C04 screw from the side. Do
not over tighten or twisting the carriage. Do the same to the rest of 2 carriages.
Fig. 15
Step 2. As shown in Fig. 16, fix the prepared belt tensioners to the carriage sets using C04.
Fig. 16
Step 3. Slide down those 3 carriages along with each Al-extrusion. Then fix 3 stop blocks
using C16 and C11 and the suggested distance from the stop block to the top is 30mm.
To Next Page
