Shenzhen Anycubic Technology Co., Ltd.
13
Fig. 29
Step 5.

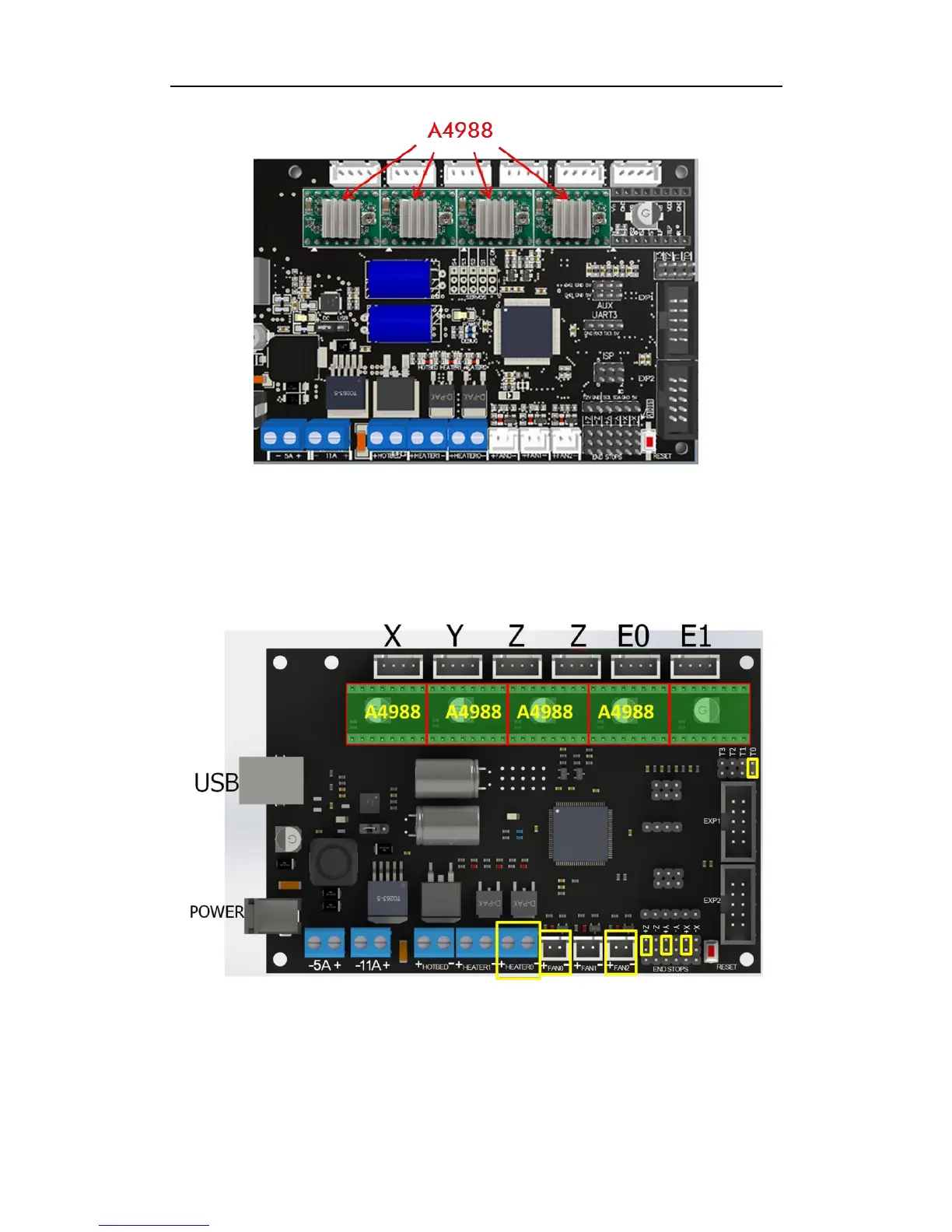

The wiring of the mainboard is explained as follows (Figure 30). Before wiring on
ANYCUBIC mainboard, please make sure the wires on effector passing through the carbon
fiber tubes, as shown in Figure 31.
Fig. 30
a. The assembly of A4988 has been mentioned previously.
b. Limit switches (ENDSTOPS): please see the bottom right in Fig. 30. 1. X+ wire to X
motor limit switch; 2 Y+ wire to Y motor limit switch; 3. Z+ wire to Z motor limit switch.
c. Thermistor: wire the thermistor terminal from the printing head to T0.
